engine cutaway model

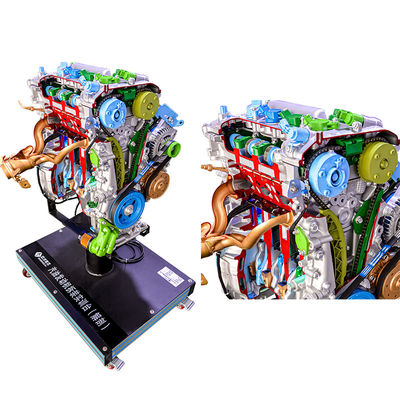

Automotive Engine Engine Cutaway Training Platform For Training Effectiveness For Toyota Corolla 1ZR Product Description: The equipment utilizes an electronically controlled gasoline engine assembly for profile processing. Each component is complete, with the profile position arranged in a logical manner to effectively depict the movement of the internal and external structure and components of the gasoline engine. This setup is particularly apt for teaching the principles

Automotive Gasoline Engine Cutaway Display Platform For Two-Stroke Single Cylinder Product Description: This teaching platform is consistently designed as a prototype of an electronically controlled gasoline engine. By conducting scientific profiling, all components are fully assembled and their positions are clearly defined. This allows for a comprehensive demonstration of both the internal and external structure of the engine, showcasing the movement of each component.

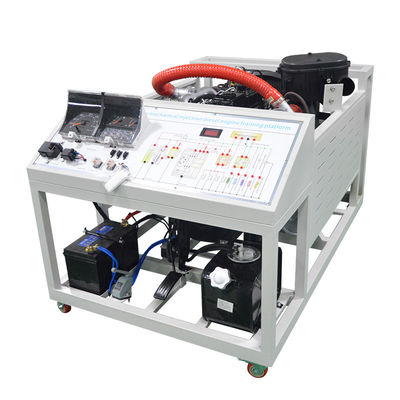

Comprehensive Diesel Engine Training System This diesel engine trainer features a fully operational Isuzu 4JB1 mechanical injection engine, serving as exceptional automotive education equipment for technical institutions. The diesel engine cutaway model provides complete visualization of internal components while functioning as both an automotive basic electric circuit trainer and advanced automotive diagnostic trainer . Key Training Features Hands-on Operation : Practice

Automotive Engine Engine Cutaway Display Platform Customizable Training For Chevrolet Cruze Product Description: The device is equipped with an electronically controlled gasoline engine assembly. It has undergone a thorough profile treatment to ensure complete and intuitive parts design. The profile design effectively presents the internal and external structure of the engine, as well as the motion process of the components. This makes it an ideal tool for teaching and

Hands-On Training Education Anatomical Model Design Drum Brake Cutaway Model Product Description: The drum brake component assembly (complete accessories) is designed for 1:1 dissection, with each part being complete and foldable to fully display the internal and external structure of the assembly. Through dissection and color spraying on each section, the mechanical structure of the internal and external components, as well as their assembly relationship, are clearly

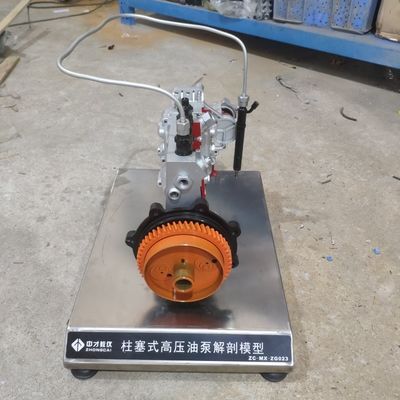

Teaching Educational Function Anatomical Model High-Pressure Fuel Pump Cutaway Model Product Description: The high pressure oil pump assembly is meticulously dissected to reveal its complete components, featuring a distribution type high pressure oil pump. This dissection allows for a comprehensive display of the assembly's internal and external structure. By utilizing different colors for each section, the mechanical structure of the components and the relationship between

Training Educational Anatomical Torque Converter Cutaway Model Product Description: The automotive hydraulic torque converter anatomical model is based on the Volkswagen Jetta 01M hydraulic torque converter and hydraulic pump assembly, which comes with all necessary accessories for disassembly. This model consists of complete parts that accurately represent the internal and external structure of the assembly. By using different colors for each section and detailed anatomy,

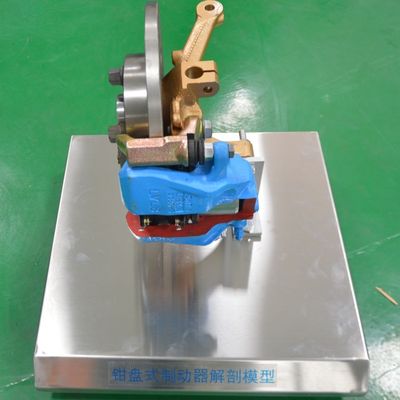

Teaching Function Caliper Disc Brake Cutaway Model For Medical Education And Training Product Description: The fixed clamp disc brake component assembly (complete accessories) is dissected in a 1:1 scale. Each part is fully intact, foldable, and allows for a complete display of the internal and external structure of the assembly. By disassembling and applying different colors to each section, the mechanical structure of the internal and external components as well as the

Anatomical Model Training Planetary Gear Transmission Cutaway Model Product Description: This equipment is dissected based on the Volkswagen Jetta 01M hydraulic torque converter and hydraulic pump assembly (complete accessories). It comes with all components, allowing for a comprehensive display of the assembly's internal and external structure. The internal mechanical structure and the relationship between components are clearly illustrated using different colors in a
