Automotive Electrical Diagnostic Trainer for Lighting Systems

1. Product Overview

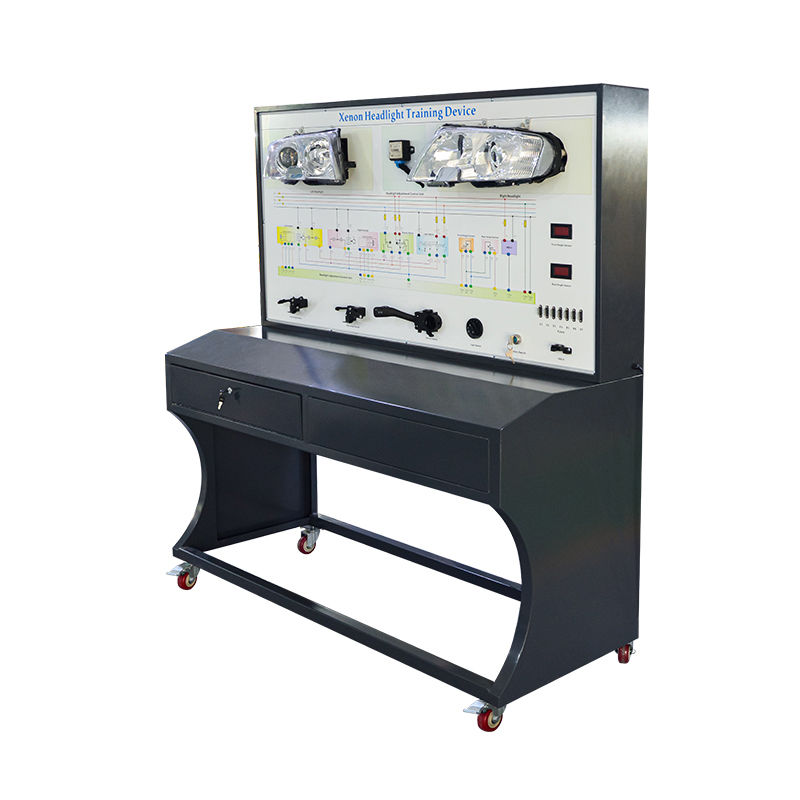

The Automotive Lighting System Trainer is a high-quality automotive education equipment designed to demonstrate the structure and operation of a vehicle’s exterior lighting system. Based on the Volkswagen Passat’s lighting system, this automotive electrical trainer board is ideal for vocational schools, colleges, and training centers to enhance students' understanding of automotive basic electric circuits and fault diagnosis.

2. Key Features

• Realistic Operation: Fully functional vehicle lighting system module, including headlights, fog lights, taillights, and license plate lights.
• Interactive Learning: Students can operate switches to observe lighting behavior and test electrical signals (voltage, resistance, current) via test terminals.

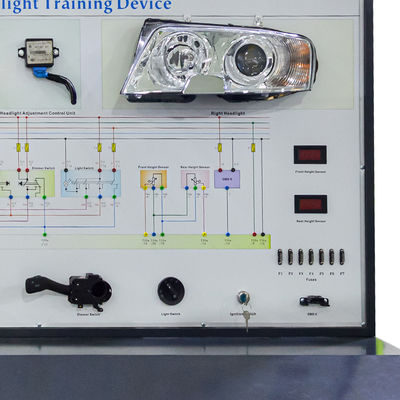

• Durable Construction: Features a fireproof, waterproof aluminum-plastic panel with a printed circuit diagram for easy reference.
• Remote Fault Simulation: Includes a wireless fault-setting system (10m range) for hands-on automotive fault diagnosis training.
• Safety & Convenience: Operates on 220V AC (converted to 12V DC) with short-circuit protection.

3. Technical Specifications

FAQ

Q1: Are you a trading company or manufacturer?
We are a manufacturer, our equipment is superior in quality and reasonable in price.

Q2: May we visit your factory?
Yes, welcome to our factory, our factory is in China Guangzhou City, it is near the Guangzhou Baiyun airport, very convenient to come here.

Q3: How to ensure the quality?
Our technicians are experts in this industry.Each assembly part has a controller to ensure stable operation of the equipment.

Q4: What is the warranty period and the delivery period?
Warranty period:12 months Delivery period: Usually 30 days

Q5: What is you terms of payment?
50% in advance, balance before shipment, we accept T/T, Cash.
