1. Product Design and Manufacturing Excellence

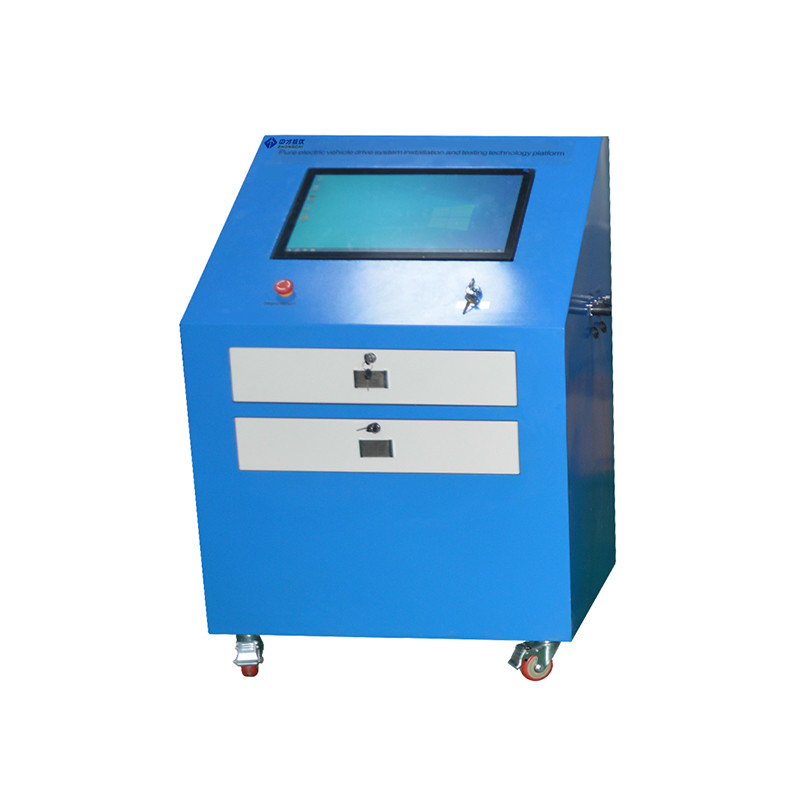

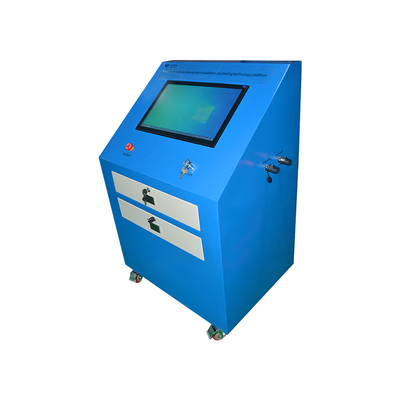

The Vehicle Testing Training System Equipment features an intelligent data acquisition box with high-adhesion matte baking paint finish, ensuring both durability and professional aesthetics. The detection panel is constructed from acrylic material with a specially treated primer coating, equipped with protected test terminals labeled with clear white screen-printed text. Its industrial-grade design meets the demands of intensive educational training environments.

2. Real-Vehicle Signal Acquisition and Connectivity

This Vehicle Testing Training System Equipment integrates authentic low-voltage signal connectors from new energy vehicles, enabling motor control signal input/output for realistic training. It includes three-phase power input sockets and low-voltage communication ports, allowing students to connect high-voltage cables and low-voltage harnesses between the drive energy supply platform and the detection box. This setup provides hands-on experience in high/low-voltage system assembly, mirroring real-world automotive electrical systems.

3. Comprehensive Signal Measurement and Diagnostics

• Voltage Testing: Supports multimeter measurements of stator winding inter-phase voltage signals for fundamental electrical training.
• Waveform Analysis: Provides three-phase voltage signal and resolver signal test points for oscilloscope-based waveform capture and fault diagnosis, enhancing students' analytical skills.
• Safety Protection: Built-in protective mechanisms on test terminals ensure safe high-voltage signal measurements.

As a core component of the Vehicle Testing Training System Equipment, this intelligent detection box combines functionality with educational practicality, equipping learners with essential skills in vehicle electrical system assembly, testing, and troubleshooting.

FAQ

Q1: Are you a trading company or manufacturer?
We are a manufacturer, our equipment is superior in quality and reasonable in price.

Q2: May we visit your factory?
Yes, welcome to our factory, our factory is in China Guangzhou City, it is near the Guangzhou Baiyun airport, very convenient to come here.

Q3: How to ensure the quality?
Our technicians are experts in this industry.Each assembly part has a controller to ensure stable operation of the equipment.

Q4: What is the warranty period and the delivery period?
Warranty period:12 months Delivery period: Usually 30 days

Q5: What is you terms of payment?
50% in advance, balance before shipment, we accept T/T, Cash.
