Equipo de entrenamiento del sistema de carga AC/DC para vehículos de nueva energía
EV Charging System Training Platform Product Overview This advanced new energy automotive training equipment provides a complete hands-on solution for understanding electric vehicle charging technology. The system features a fully functional AC/DC charging station with integrated management capabilities, allowing students to practice real-world charging operations, system monitoring, and fault diagnosis. Designed for vocational schools and technical training centers, the

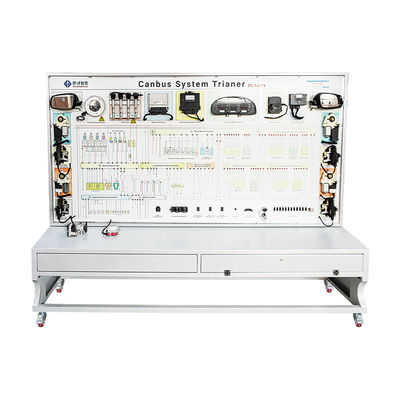

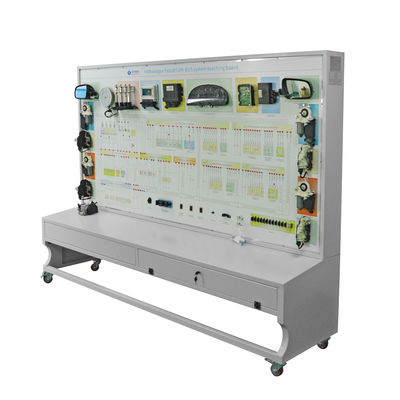

Placa de entrenamiento CAN Bus para equipos de diagnóstico de vehículos
Product Overview This automotive teaching equipment is a model for CAN bus system training , designed to provide hands-on learning for modern vehicle network technology. Based on the Volkswagen Passat CAN system , it includes multiple ECUs (engine, transmission, ABS, airbag, and comfort systems) to demonstrate real-world automotive electrical networks . Ideal for vocational schools and technical training centers, this automotive training board serves as a comprehensive
Equipos de entrenamiento automotriz: Tres tableros de demostración del sistema de encendido
Product Introduction This automotive electrical trainer board features three typical ignition systems (contact point, Hall-effect electronic, and distributorless grouped ignition) using authentic components to demonstrate engine ignition principles. As essential automotive education equipment , this automotive electrical trainer comprehensively displays the structure and working processes of various ignition systems. Ideal for vocational schools and technical training centers
Producto educativo
Automotive Educational Training Kit Educational Product Functional features: 1. The measurement panel of the training platform is painted with a color inkjet circuit diagram, which is made of 8mm thick high-strength acrylic sheet by inkjet. It is resistant to large temperature difference, wear-resisting, moisture-proof, anti-corrosion, not easy to deform, long service life, bright color, not easy to fade, etc. 2. The operating panel of the training platform is equipped with

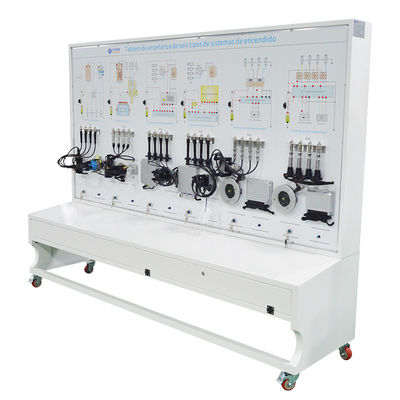

Equipo de formación en sistemas de encendido avanzados para automóviles
Comprehensive Ignition System Trainer This Training Stand Ignition Systems unit serves as a complete automotive education equipment, featuring six distinct ignition technologies in one integrated platform. As both an automotive electrical trainer and automotive diagnostic trainer, it provides hands-on experience with contact point, Hall effect, magnetic induction, photoelectric, distributorless, and independent coil-on-plug systems - making it ideal for automotive teaching
Equipo de entrenamiento del sistema de gestión de baterías para vehículos eléctricos
New Energy Vehicle Power Battery Teaching & Training System 1. Product Overview This product adopts mass-produced lithium iron phosphate (LiFePO4) power batteries for new energy automotive training equipment , with a nominal voltage of 3.2V per cell and a capacity of 20Ah, ensuring high safety and stability. The battery pack consists of 24 cells in series , delivering a rated voltage of 73.6V, and is equipped with an advanced Battery Management System (BMS) . It enables real
Tablero de demostración del sistema eléctrico automotriz educativo
Product Overview This Automotive Demonstration Board is constructed using genuine electrical components from the Toyota Land Cruiser, integrating 10 core systems including ignition system, instrument cluster, lighting system, and wiper system . As an advanced Electrical System Training Platform , its modular design combines theoretical education with hands-on practice, making it ideal for vocational institutes and training centers offering automotive electrical diagnostics
Plataforma de capacitación de equipos educativos para el sistema de chasis NEV
1. Product Overview The NEV Electrical System Training Platform is an integrated diagnostic station designed to pair with the NEV Chassis System Training Platform . Utilizing MIL-STD aviation connectors, it provides direct access to low-voltage circuits for real-time measurement and analysis of critical EV subsystems, including: • Battery Management System (BMS) & Charging Networks • High-Voltage Distribution Unit (PDU) • Climate Control & Thermal Management • Body Electronic
Dispositivo de evaluación de la formación básica de electricistas
Perforated Panel Basic Maintenance Electrician Training and Assessment Device (Single-Sided, Dual-Group Type) Product Description: This device mainly consists of a training table, perforated board, and training components. Students can rationally arrange the components based on the training circuit, with installation and wiring entirely completed by themselves, closely resembling an industrial setting. It enables the simulation, installation, and debugging of machine tool
