electrical controls training system
"

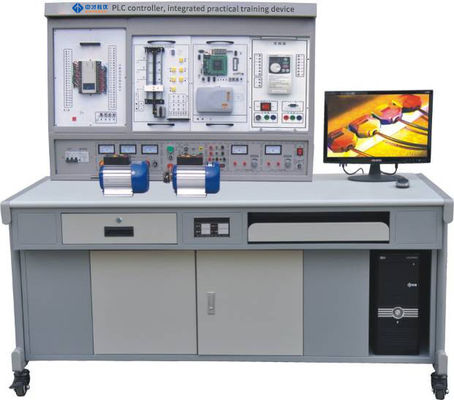

Enseñanza de control de PLC Entrenamiento de controles eléctricos Sistema de entrenamiento para el desarrollo de MCU
PLC Control Training for Teaching programmable controller, MCU development and application, frequency conversion speed control integrated training device Product Description: The device integrates multiple components including a single-chip microcomputer, variable frequency control and speed regulation, PLC programmable logic controller, communication editor, programming software, industrial control configuration software, simulation teaching software, analog control box, and

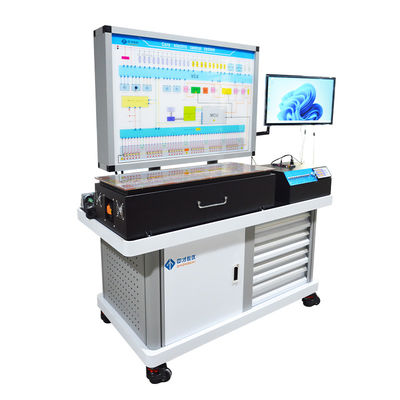

Equipo de entrenamiento de control eléctrico de alta tensión de nueva energía
New Energy Vehicle Control Assessment System Test Bench 1. Core Electric Control System Architecture This new energy automotive training equipment adopts an automotive-grade SPC5744 MCU processor with: 10 high-side switches | 12 PWM drives | 7 high-side power drivers | 8 low-side drivers 12 Hall-effect digital inputs | 14 isolated ADC analog inputs | 7 low-control switches 4 sets of 5-wire stepper motor drivers | 3 CAN channels | 1 LIN channel Modular 4-layer PCB design
Capacitación en control de PLC para microcomputadores de chip único eléctrico integrado
PLC Control Trainingprogrammable Controller, Single Chip Microcomputer And Integrated Training Device Of Electric Control Product Description: The training device consists of various components including programmable logic controller (PLC), communication editor, programming software, industrial control configuration software, simulation teaching software, simulation control practical training box, and physical objects. These elements come together to offer comprehensive
Equipo de entrenamiento de control eléctrico de alto voltaje para automóviles personalizable
Technical Specifications of New Energy Training Bench 1. Hardware Configuration Module Specifications Main Controller NXP SPC5744 (Automotive-grade) Power Drivers 7 high-side / 8 low-side / 12 PWM / 4 stepper motor groups Signal Acquisition 12 digital Hall inputs / 14 isolated ADC channels Communication 3x CAN / 1x LIN Mechanical Design Aluminum-steel hybrid frame / Waterproof & shockproof enclosure / Modular PCB 2. Software & Training Features Function Supported Features

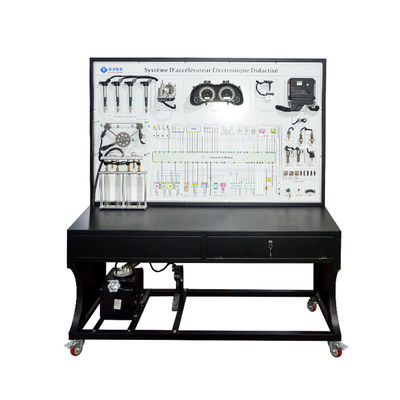

Equipo educativo del motor Sistema de control eléctrico del motor
Engine Training Model Car Educational Equipment Of Engine Electrical Control System Product Overview Based on the advanced electronic control system of the Toyota Corolla 1ZR-FE engine, this Automotive Training Equipment serves as a comprehensive Petrol Engine Training Bench tailored for modern automotive education. It is specifically designed to offer students a practical, in-depth understanding of engine electronic acceleration systems through direct interaction and

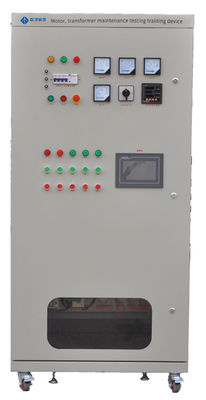

Plataforma de capacitación de gabinete de mantenimiento eléctrico avanzado industrial moderno
Modern Industrial Design Advanced Electrical Maintenance Training Cabinet Training Platform Product Description: The device adopts the standard power distribution cabinet as the main cabinet, making full use of the space position of the cabinet, equipped with power control, low-voltage electrical devices, PLC, analog module, frequency converter, DC speed regulation module, the power distribution cabinet covers a small area, beautiful appearance; The electrical control circuit
Equipo de formación en iluminación de instrumentos y reparación eléctrica
Training Materials Maintenance Electrician Electrical Control And Instrument Lighting Training Equipment Product Description: The shape structure and technical indicators of the "SYWXG-01E maintenance electrician electrical control skills assessment and training device" are identical to those of the "SYWXG-01D maintenance electrical instrument lighting skills assessment and training device". The "SYWXG-01D" model incorporates additional features on top of the existi
Plataforma de capacitación en habilidades eléctricas Mantenimiento Junta de pruebas eléctricas para capacitación
Network Intelligent Maintenance Electrician Electrical Control Skills Training Intelligent Examination Device Training Platform Product Description: This device is a comprehensive equipment designed for enhancing electrical skills training and conducting networked assessment of machine tool circuits. It aims to educate students in the maintenance of electrical and control circuits, as well as practical electronic circuits. By using this device, students can quickly grasp the
Formación en mantenimiento eléctrico de paneles perforados Gabinete de formación de electricistas industriales
Dual-Sided, Perforated Panel Design Electrical Maintenance Training Cabinet Product Description: The device is designed according to the "worker grade Standard" and "Vocational skill appraisal" standard issued by the Ministry of Labor and Social Security. It is a multi-functional equipment integrating theoretical training, practical operation, and appraisal. The device adopts a standard electric cabinet, making full use of the two-sided space of the cabinet, and provides two
