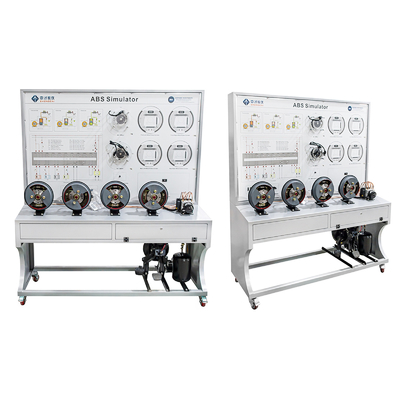

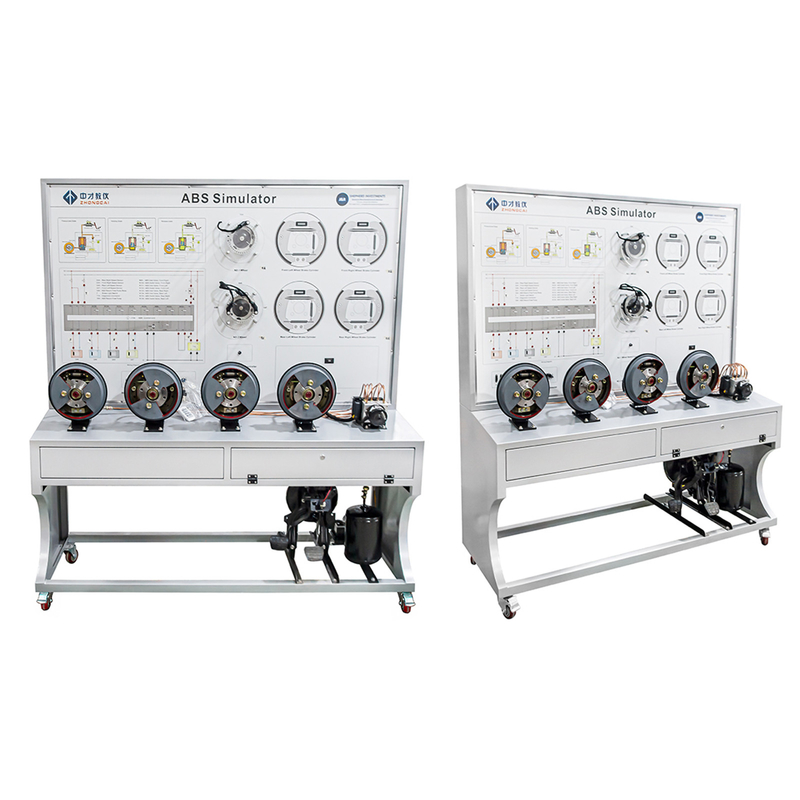

ABS Braking System Training Board Automotive Diagnostic And Repair Teaching Tool

Product Description:

This training equipment is specially made with a complete ABS braking system. It is built using genuine components to showcase its structural makeup and operational principles. This equipment is perfect for educational purposes, providing theoretical knowledge and practical training in automotive ABS systems.

Features:

Operational ABS System: The system realistically simulates the working process of an ABS braking system, including the dynamic response of electronic control components such as solenoid valves. Users can interact with various switches to observe its operation.

Durable & Informative Panel: The teaching panel is crafted from high-quality aluminum-plastic composite, resistant to impact, corrosion, fire, and moisture. It features a permanently printed color circuit diagram and schematic illustration for easy cross-reference between theory and physical components.

Integrated Measurement Terminals: Equipped with test terminals, the panel allows direct measurement of electrical signals (e.g., resistance, voltage, current, frequency) from ABS system components, facilitating practical analysis.

Diagnostic Compatibility: A built-in OBD-II port enables connection with standard or specialized automotive scanners, supporting functions like fault code reading/clearing and real-time data stream analysis.

Robust Construction: The panel is made of 1.5mm cold-rolled steel for durability, while the powder-coated steel frame ensures stability. Mobility is enhanced with lockable casters, and an attached 40cm desktop provides space for tools or documentation.

Safe Power Supply: Powered by 220V AC, the device converts to 12V DC internally, eliminating the need for external batteries. The system includes short-circuit protection for safety.

Technical Parameters:

Applications:

Product Application Occasions and Scenarios for the Zhong Cai Brake Trainer (Model: Volkswagen Jetta ZC-QCB31B) are diverse and cater to various settings due to its versatile features and functions. This vocational teaching equipment, originating from China and certified with ISO9001/CE, is suitable for a wide range of training environments.

One of the key application scenarios for the Zhong Cai Brake Trainer is in automotive schools and training centers. As a pressure brake breeder, this training platform is ideal for students learning about braking systems and their components. The hands-on experience provided by this equipment helps beginners understand the functioning of brakes and gradually advance their skills to an expert level.

Furthermore, auto repair workshops and garages can benefit from the Zhong Cai Brake Trainer for practical demonstrations and skill enhancement. Mechanics and technicians can utilize this equipment to simulate brake system scenarios, troubleshoot issues, and conduct training sessions effectively.

Automobile manufacturers and dealerships can also make use of this product during employee training programs. The customizable color option allows for branding alignment, while the durable steel training materials ensure long-lasting use. The DC 12V power source makes it convenient to set up the training platform in various locations.

With a minimum order quantity of 1 set and negotiable pricing, the Zhong Cai Brake Trainer offers flexibility for small-scale educational institutions, individual trainers, or large organizations. The wooden box packaging and 15-25 workdays delivery time ensure safe and timely shipment.

In conclusion, the Zhong Cai Brake Trainer serves as a valuable tool for enhancing brake system knowledge and skills across different training levels - from beginners to advanced users. Its supply ability of 1000 sets makes it a reliable choice for educational institutions, workshops, and automotive businesses seeking quality training equipment.
