Six Types Of Automotive Integrated Ignition System Teaching Board
Product Details

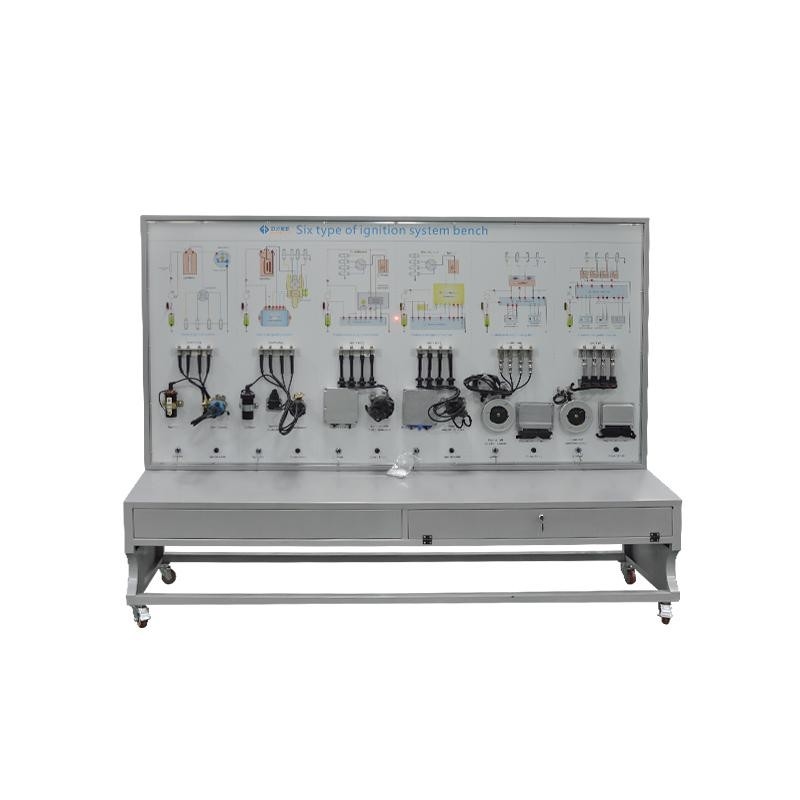

Six Types Of Automotive Integrated Ignition System Teaching Board
Product Description:
The Ignition System Teaching Board is an all-in-one educational platform designed to showcase six critical engine ignition systems, including touchpoint, Hall electronic, magnetic induction, distributor-free grouping, and photoelectric ignition systems. Through meticulously labeled components and interactive modules, this board provides a clear visual breakdown of each system’s structure, circuitry, and operational logic. Ideal for automotive engineering programs, it enables students to analyze spark generation, timing control, and sensor interactions across diverse ignition technologies in a hands-on environment.
Technical Parameters:
| Customizable | OEM |
| Training Materials | Steel |
| Type | Training Platform |
| Suitable For | Technical Schools, Training Centers, Workshops, College |
| Size | 1740*700*1700mm |
| Feature | Education Training |
| Function | Teaching |
| Training Level | Beginner To Advanced |
Applications:
The ZhongCai ZC-QCD18A Six Types Of Automotive Integrated Ignition System Teaching Board is a purpose-built educational tool designed to meet the rigorous demands of vocational schools and technical training institutions. By integrating multiple ignition system configurations—such as Hall electronic, magnetic induction, and distributor-free grouping systems—this board enables dynamic demonstrations of engine ignition mechanics. Instructors can visually deconstruct components like coils, sensors, and spark plugs while explaining voltage distribution and timing synchronization, ensuring students grasp both structural and functional principles in real-world scenarios.
-
