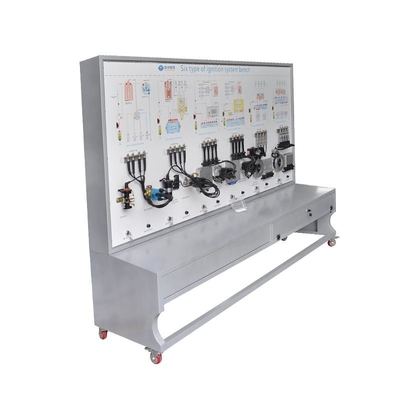

Six Types of Automotive Engine Ignition System Training Panel
Place of Origin:
Guangdong,China
Brand Name:
Zhongcai
Certification:
ISO9001/CE
Model Number:
ZC-QCD18A
Minimum Order Quantity:
1
Price:
Negotiatable
Standard Packaging:
Wooden Box
Delivery Time:
15 Work Days
Payment Terms:
T/T
Supply Ability:
1000 Sets
Product Details
Highlight:
automotive ignition system training panel
,engine electrical trainer panel
,six-type ignition system trainer
Function:
Teaching
Suitable For:
Technical Schools, Training Centers, Workshops,Collage
Type:
Training Platform
Feature:
Education Training
Working Temperature:
-40 ℃~ + 50 ℃
Working Voltage:
DC 12V
External Power Supply:
AC 220V ± 10% 50Hz
Size:
1740*700*1700mm
Product Description
Six Types Of Automotive Engine Ignition System Training Panel
Product Description:
Engineered for dynamic education, this Six Types Of Automotive Engine Ignition System Training Panel allows users to simulate and compare the working principles of six ignition systems side by side. Learners can activate tactile switches to observe voltage changes in the Hall sensor circuit, monitor magnetic field fluctuations in inductive systems, or trace signal paths in distributor-free configurations. Integrated LED indicators and real-time data displays enhance understanding of ignition timing, coil charging, and spark plug activation, making complex concepts accessible for both beginners and advanced technicians.
Technical Parameters:
| Customizable | OEM |
| Training Materials | Steel |
| Type | Training Platform |
| Suitable For | Technical Schools, Training Centers, Workshops, College |
| Size | 1740*700*1700mm |
| Feature | Education Training |
| Function | Teaching |
| Training Level | Beginner To Advanced |
Applications:
Tailored for hands-on learning, the ZhongCai ZC-QCD18A Six Types Of Automotive Engine Ignition System Training Panel includes simulated fault modes to teach critical troubleshooting skills. Educators can introduce issues such as weak spark generation, sensor misalignment, or circuit interruptions, challenging students to diagnose and resolve problems using multimeters, oscilloscopes, and diagnostic software. This interactive approach bridges theoretical knowledge with practical expertise, preparing learners to address common ignition system failures in automotive repair environments.
