Automotive Immobilizer Engine Ignition System Training Board

Name: Automotive Immobilizer Engine Ignition System Training Board
Brand: Guangdong Zhongcai Education Equipment Co., Ltd.
SKU: ZC-QCD18A
Availability: InStock

Brand Name:	Zhongcai
Model Number:	ZC-QCD18A
MOQ:	1
Price:	Negotiatable
Delivery Time:	15 Work Days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong,China

Certification:

ISO9001/CE

Function:

Teaching

Suitable For:

Technical Schools, Training Centers, Workshops,Collage

Type:

Training Platform

Steel Pipe:

60 X 40 X 3mm

Working Temperature:

-40 ℃~ + 50 ℃

Customizable:

OEM

Training Materials:

Steel

Packaging Details:

Wooden Box

Packaging Details:

Wooden Box

Supply Ability:

1000 Sets

Product Description

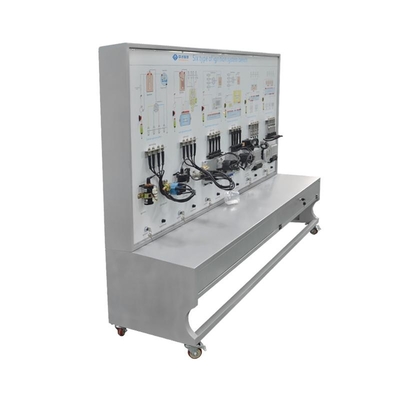

Automotive Immobilizer Engine Ignition System Training Board

Product Description:

Featuring a modular design, this Automotive Immobilizer Engine Ignition System Training Board lets educators isolate individual ignition systems—such as photoelectric or magnetic induction units—or demonstrate their integration within a full engine setup. Transparent panels expose internal components like distributors, rotors, and control modules, while interchangeable parts encourage hands-on assembly practice. Vocational schools and workshops leverage this board to teach troubleshooting skills, from diagnosing faulty crank angle sensors to optimizing spark advance in electronic ignition systems.

Technical Parameters:

Customizable	OEM
Training Materials	Steel
Type	Training Platform
Suitable For	Technical Schools, Training Centers, Workshops, College
Size	17407001700mm
Feature	Education Training
Function	Teaching
Training Level	Beginner To Advanced

Applications:

Featuring a modular architecture, the Automotive Immobilizer Engine Ignition System Training Board allows educators to isolate specific ignition subsystems or combine them for comprehensive system analysis. Removable components, such as photoelectric sensors or ignition coils, enable students to practice assembly, disassembly, and calibration techniques. Clear labeling and color-coded circuits simplify complex wiring schematics, making the board an ideal resource for teaching both foundational and advanced ignition system concepts in classrooms and workshops.

Automotive Immobilizer Engine Ignition System Training Board 0

Automotive Immobilizer Engine Ignition System Training Board 1

Automotive Immobilizer Engine Ignition System Training Board 2

Automotive Immobilizer Engine Ignition System Training Board 3

Automotive Immobilizer Engine Ignition System Training Board 4

Automotive Immobilizer Engine Ignition System Training Board 5

Automotive Immobilizer Engine Ignition System Training Board 6

Automotive Immobilizer Engine Ignition System Training Board 7

Automotive Immobilizer Engine Ignition System Training Board 8

Automotive Immobilizer Engine Ignition System Training Board 9
