Didactic Equipment Automotive Ignition System Teaching Board

Name: Didactic Equipment Automotive Ignition System Teaching Board
Brand: Guangdong Zhongcai Education Equipment Co., Ltd.
SKU: ZC-QCD18A
Availability: InStock

Brand Name:	Zhongcai
Model Number:	ZC-QCD18A
MOQ:	1
Price:	Negotiatable
Delivery Time:	15 Work Days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong,China

Certification:

ISO9001/CE

External Power Supply:

AC 220V ± 10% 50Hz

Dimensions:

1740 X 700 X 1700mm

Mobile Casters:

100 X 60mm

Steel Pipe:

60 X 40 X 3mm

Working Temperature:

-40 ℃~ + 50 ℃

Type:

Training Platform

Suitable For:

Technical Schools, Training Centers, Workshops, Collage

Function:

Teaching

Packaging Details:

Wooden Box

Supply Ability:

1000 Sets

Highlight:

Automotive Ignition System Teaching Equipment

Automotive Ignition System Teaching Board

Product Description

Didactic Equipment Automotive Ignition System Teaching Board

Product Description:

Equipped with digital interfaces and real-time monitoring tools, the Didactic Equipment Automotive Ignition System Teaching Board provides instant feedback on system performance. Students can track waveform patterns of primary and secondary circuits, measure voltage drops across contact points, and analyze the impact of timing adjustments on spark efficiency. This data-driven learning method deepens understanding of how electronic control units (ECUs) optimize ignition processes in modern engines.

Technical Parameters:

Customizable	OEM
Training Materials	Steel
Type	Training Platform
Suitable For	Technical Schools, Training Centers, Workshops, College
Size	17407001700mm
Feature	Education Training
Function	Teaching
Training Level	Beginner To Advanced

Applications:

Prioritizing safety and adaptability, the ZhongCai ZC-QCD18A Didactic Equipment Automotive Ignition System Teaching Board operates at low-voltage levels to replicate engine ignition dynamics without hazardous risks. Its scalable design supports beginner lessons on basic circuitry as well as advanced projects involving hybrid ignition technologies. With durable construction and compatibility with industry-standard tools, this board serves as a long-term investment for institutions committed to training skilled technicians in automotive diagnostics and emerging mobility systems.

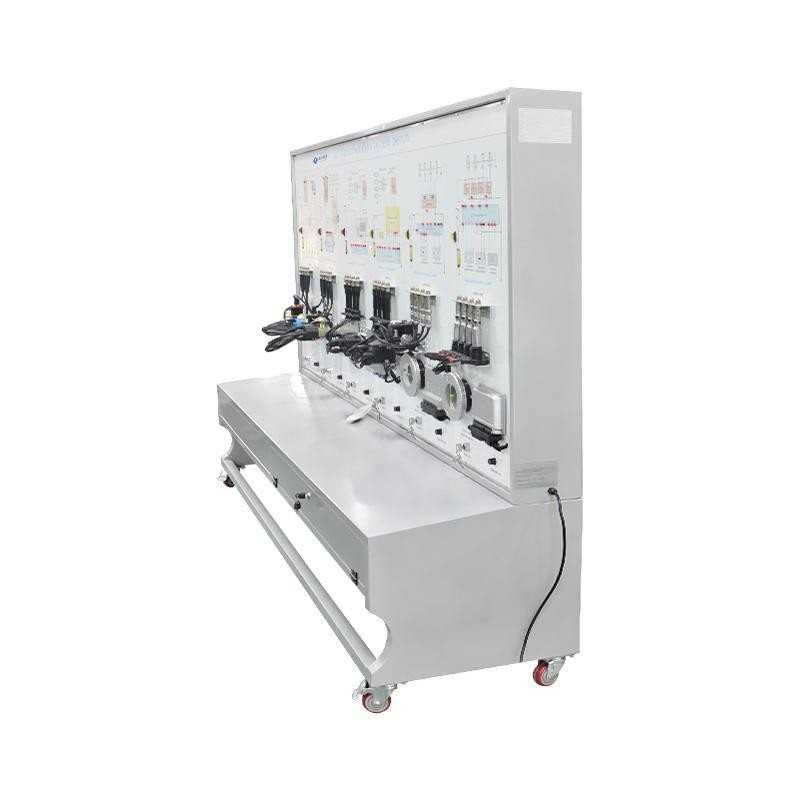

Didactic Equipment Automotive Ignition System Teaching Board 0

Didactic Equipment Automotive Ignition System Teaching Board 1

Didactic Equipment Automotive Ignition System Teaching Board 2

Didactic Equipment Automotive Ignition System Teaching Board 3

Didactic Equipment Automotive Ignition System Teaching Board 4

Didactic Equipment Automotive Ignition System Teaching Board 5

Didactic Equipment Automotive Ignition System Teaching Board 6

Didactic Equipment Automotive Ignition System Teaching Board 7

Didactic Equipment Automotive Ignition System Teaching Board 8

Didactic Equipment Automotive Ignition System Teaching Board 9
