Electric Vehicle DC Charging Station Educational Equipment

EV DC Charging Station Educational Equipment – Technical Training Solution

1. Product Overview

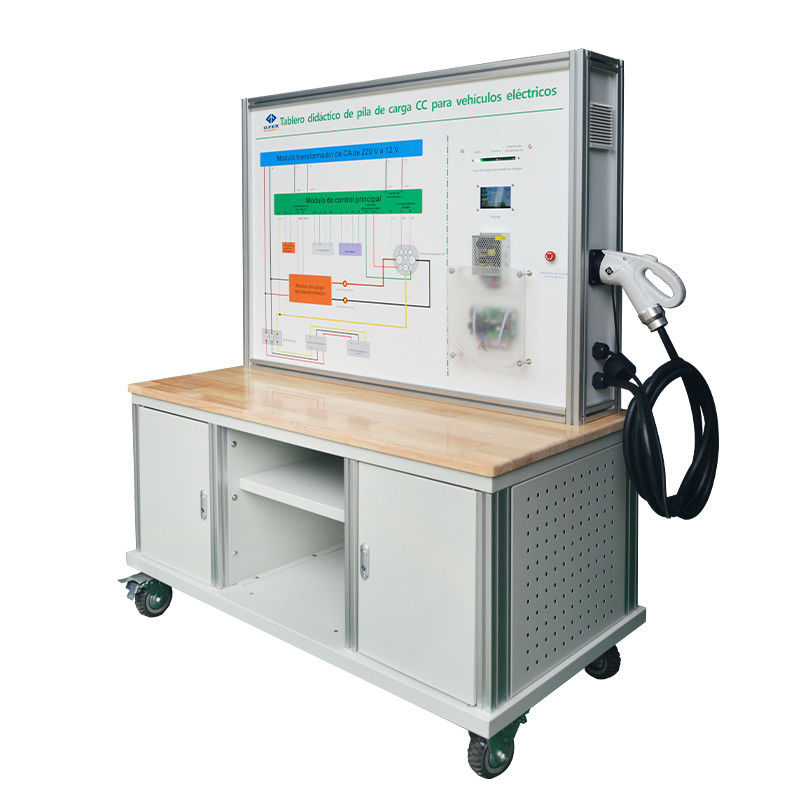

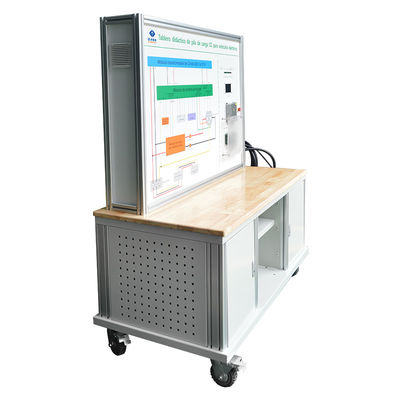

The DC Charging Station Educational Equipment is a modular training system based on a fully functional electric vehicle (EV) DC fast charger, consisting of a mobile training frame and an interactive teaching panel. Designed for vocational schools, technical institutes, and corporate training programs, it provides hands-on learning in system architecture, operational principles, fault diagnosis, and backend management, equipping trainees with core competencies in EV charging technology.

2. Key Features

Smart Management & Real-World Operation

• • Integrated with an operational management terminal for real-time monitoring of charging status (voltage, current, temperature, energy consumption, and protection signals), enabling remote control and troubleshooting.

  • Supports RFID card activation (slow-charging mode) with a live data display on the charger’s screen, demonstrating the complete charging process and equipment handling.

Safety & Teaching-Optimized Design

• • Constructed with EU-standard aluminum profiles and sheet metal for durability and an aesthetic appearance, featuring a built-in tool storage cabinet for convenient accessory organization.

  • Equipped with emergency stop buttons and multi-layer protection, with real-time alarm synchronization on the display for enhanced operational safety.

  • Color-coded circuit diagrams and external test terminals allow non-intrusive signal measurement (voltage, current, frequency, etc.), facilitating circuit analysis and fault diagnosis.

Intelligent Fault Simulation & Assessment

• • Wireless fault-setting via mobile APP (Wi-Fi direct connection) supports "open circuit," "short circuit," and "intermittent faults" with customizable timing for advanced troubleshooting training.

  • Teacher-controlled exams with automated grading and performance feedback, supporting up to 100 concurrent trainees for large-scale skill certification.

3. Training Capabilities

Operational Principles

• • Demonstrates charging sequence, status monitoring, and data communication workflows.

Backend Management

• • Hands-on practice with charging station monitoring, user management, and fault response.

Fault Diagnosis & Repair

• • Simulates common failures (e.g., relay malfunction, communication errors) to develop diagnostic and repair skills.

Maintenance & Disassembly

• • Teardown exercises for core components (e.g., charging gun, control module) to reinforce maintenance proficiency.

This DC Charging Station Educational Equipment combines theory, practical training, and assessment in a unified platform, delivering industry-aligned competency development for the next generation of EV technicians.

FAQ

Q1: Are you a trading company or manufacturer?
We are a manufacturer, our equipment is superior in quality and reasonable in price.

Q2: May we visit your factory?
Yes, welcome to our factory, our factory is in China Guangzhou City, it is near the Guangzhou Baiyun airport, very convenient to come here.

Q3: How to ensure the quality?
Our technicians are experts in this industry.Each assembly part has a controller to ensure stable operation of the equipment.

Q4: What is the warranty period and the delivery period?
Warranty period:12 months Delivery period: Usually 30 days

Q5: What is you terms of payment?
50% in advance, balance before shipment, we accept T/T, Cash.
