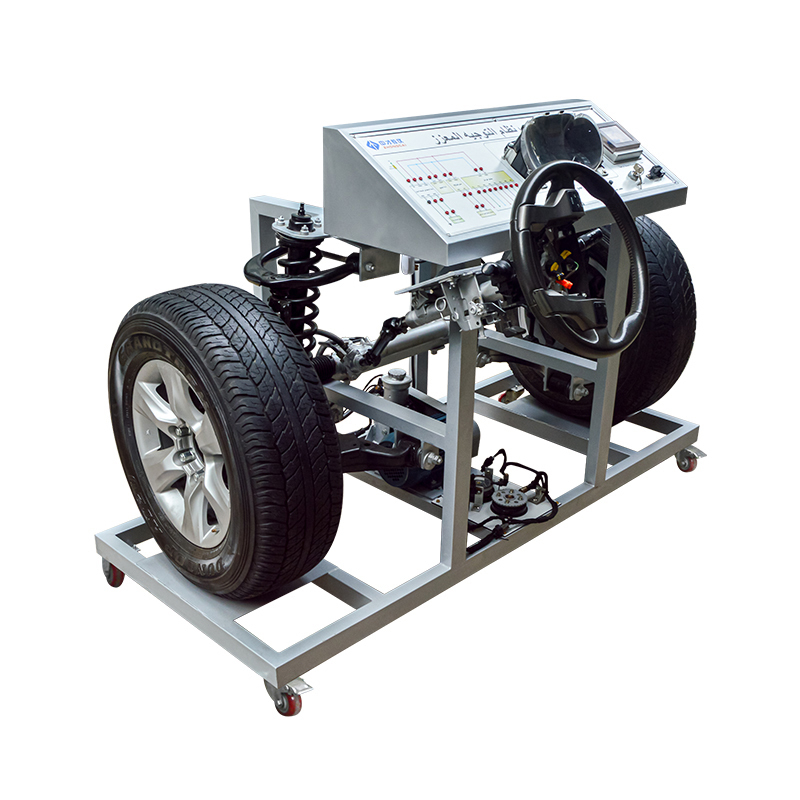

Automotive Electric Power Steering System Teaching Board

1 Product parameters

Product name Automotive electric power steering system teaching board
Product size 1800×1200×1600mm(L×W×H)
Weight about 200kg
Power supply voltage AC220V

2 Technical specifications
(1) Product introduction
This equipment adopts Toyota Land Cruiser electric power steering system in kind as the basis, can completely restore the working state of the car steering system, easy to operate, safe and reliable. It is suitable for teaching needs of electric power steering system and maintenance practical training in middle and higher vocational and technical colleges, general education colleges and training institutions.
(2) Structural composition.

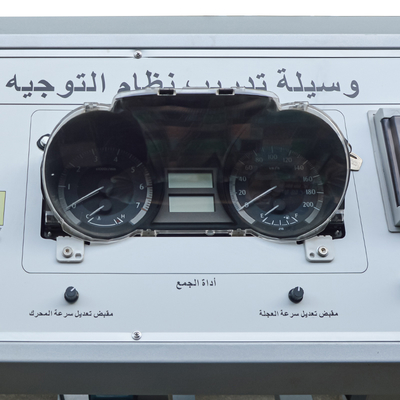

Original front axle, original steering machine, combined instrumentation, steering power motor, front suspension, front wheel tires, steering wheel and steering universal joint, movable table, universal casters with locking, etc.

(3) Functional features
1. Real runnable car electronically controlled power steering system, fully demonstrate the composition of the structure of the electronically controlled power steering system.
2. Adjust the speed output simulation knob, simulate the change of speed from low to high, turn the steering wheel left and right, and fully demonstrate the working process of electronically controlled power steering.
3. The training table panel is installed with detection terminals, which can directly detect the electrical signals of the electric control power steering system circuit components on the panel, such as resistance, voltage, current, frequency signals, etc.
4. The training table panel adopts 4mm thickness of high-strength aluminum composite board UV painting, with a large temperature difference, wear-resistant, moisture-proof, anti-corrosion, not easy to deformation, long service life, bright colors, not easy to fade and other characteristics.
5. The training table is made of high-quality steel welding, with high strength, corrosion resistance, long life, etc., after spraying process, beautiful and high-grade appearance, the table frame with self-locking casters device, mobile and flexible, safe, reliable, durable.
6, the work of the teaching board using ordinary 220V AC power supply, converted into 12V DC power supply by internal circuit voltage rectification, 12V DC power supply with anti-short-circuit function.
7, equipped with fault setting and assessment system.
