Auto Automatic Transmission Training Educational Equipment

1 Product parameters

Product name auto automatic transmission training table
Product size 1500×1000×1800mm(L×W×H)
Weight about 300kg
Motor power supply AC380V

2Technical specifications
(1) Product introduction

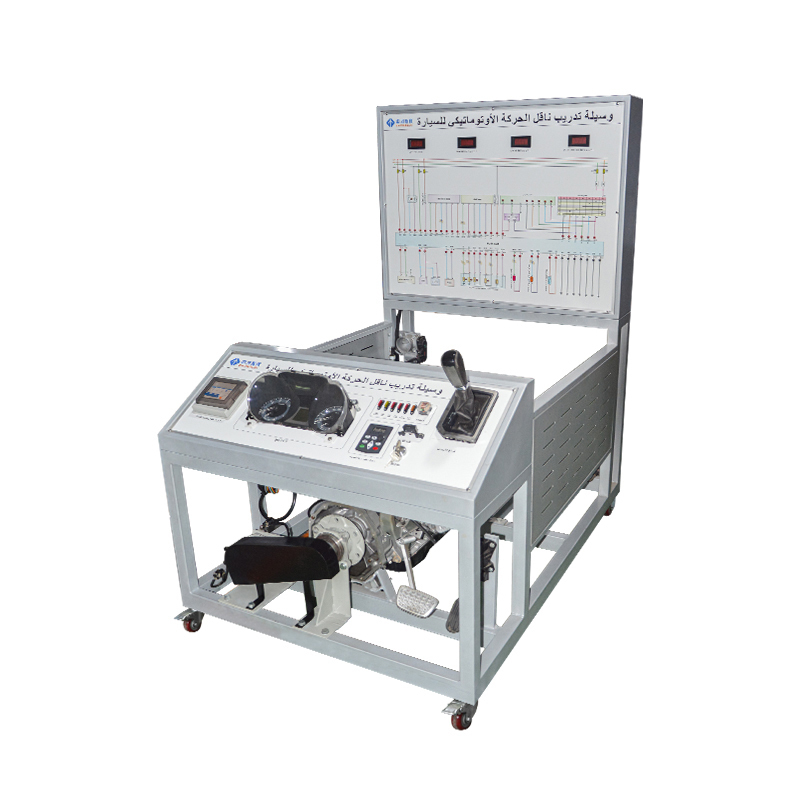

The equipment uses Toyota Land Cruiser electronically controlled automatic transmission assembly as the basis, adjustable speed three-phase asynchronous motor as the power source, the automatic transmission for gear display, neutral start, forward gear and reverse gear operation and other working conditions practice operation. It is suitable for the teaching needs of the theory and maintenance training of automatic transmission in vocational and higher technical colleges, general education colleges and training institutions.
(2) Structural components
Transmission assembly, the original transmission computer, instrumentation, transmission operation of all relevant original accessories, fault setting and troubleshooting system, the original circuit schematic and detection terminals, diagnostic seat, three-phase asynchronous motor, transmission half-shaft, braking mechanism, shift mechanism, console, movable stand, with locking universal casters, etc.
(3) Functional features
1, the real can run electronically controlled automatic transmission, driven by adjustable speed three-phase asynchronous motor, gear display, neutral start, forward gear operation, reverse gear operation and other working conditions practice operation, fully demonstrate the composition of the automatic transmission structure and work process.
2,The rated current value specified on the nameplate of the motor can be set by the inverter, and the electronic thermal overload relay can be used to prevent the motor from being overloaded. In order to prevent the shock during the starting/stopping of the mechanical equipment, the acceleration/deceleration can be set by the inverter with S-curve graphics.

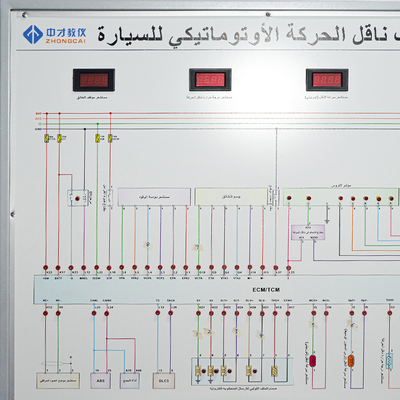

3, the training table panel is painted with colorful spray-painted circuit diagram and working principle schematic, students can visually compare the circuit diagram and the real thing, recognize and analyze the working principle of automatic transmission control system.
4, the training table panel is installed with detection terminals, can be directly on the panel to detect the sensors, actuators, control unit pin electrical signals, such as resistance, voltage, current, frequency signals.
5,The training table panel is installed with automobile instrumentation, pressure gauge, real-time display of engine speed, vehicle speed, automatic transmission gear, main oil pressure and other parameter changes.
6,The training table is installed with a diagnostic seat, which can be connected to a special or general-purpose car decoder to read fault codes, clear fault codes and other self-diagnostic functions for the engine automatic transmission electronic control system.
7,The training table is equipped with motor guard, output shaft guard and other safety protection devices
8. The base of the training table is welded with steel structure, and the surface is treated with spraying technology, with self-locking casters, which is flexible, safe, reliable and durable.
9. The training table is equipped with a fault setting assessment device suitable for teaching, which can set one and more common faults to meet the assessment requirements of vocational skills teaching.
10. The training table measurement panel is painted with colorful spray-painted circuit diagrams, using 4mm thickness of high-strength aluminum plastic plate spray-painted, with a large temperature difference, wear-resistant, moisture-proof, anti-corrosion, not easy to deformation, long service life, bright colors, not easy to fade and so on.
