Volkswagen Automotive Chassis Training System Educational Aids
Place of Origin:
Guangdong,China
Brand Name:
Zhongcai
Certification:
IS09001/CE
Model Number:
ZC-QCB35B
Minimum Order Quantity:
1
Price:
Negotiatable
standard packaging:
Wooden Box
Delivery Time:
15-25Work Days
Payment Terms:
T/T
Supply Ability:
1000
Product Details
Highlight:
Automotive Chassis Training Board
,Refurbished Gearbox
,Colour Coded Sections
Steering Torque:
0-20Nm
Usage:
Demonstration And Training
Customizable:
OEM
Warranty:
1 Year
Type:
Training Equipment
Feature:
Education Training
Maximum Load:
10A
Weight:
10kg
Mobile Caster:
120 X 80mm
Control Panel:
Adjustable Steering Assistance Level
Working Temperature:
-40 ℃~ + 50 ℃
Product Description

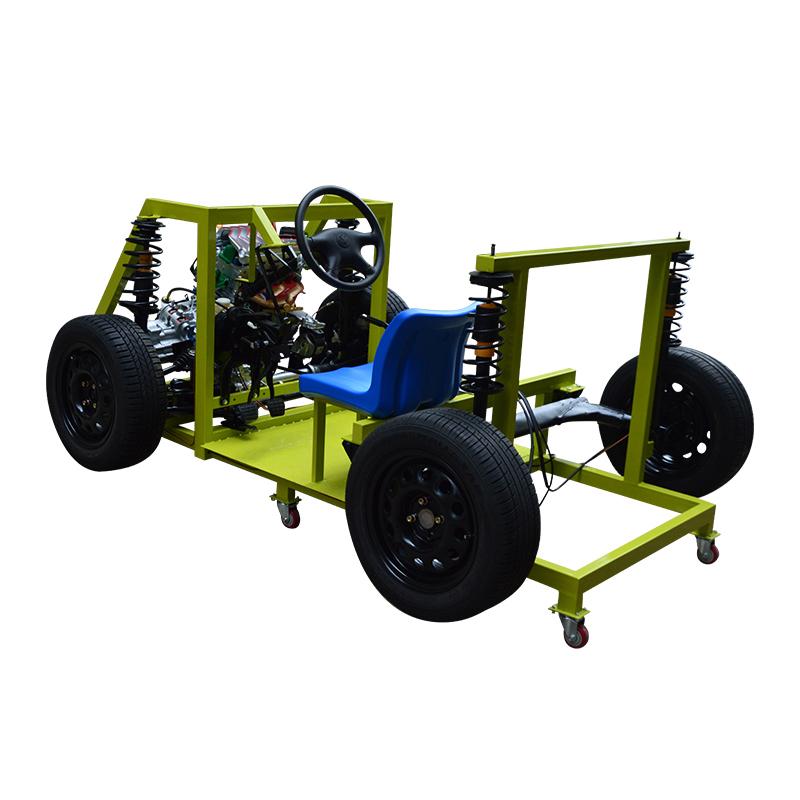

Volkswagen Jetta Automotive Chassis Training System
1. Comprehensive Training Platform
The Volkswagen Jetta Automotive Chassis Training System is a complete hands-on educational solution featuring fully operational chassis components. This system includes authentic drivetrain, suspension, steering, and braking systems with a refurbished manual transmission and gasoline engine. The platform measures 2500×1600×1500mm (L×W×H) and is built on a heavy-duty steel frame with locking casters for mobility and stability.
2. Key Components and Features
- Complete Chassis Systems: Includes drivetrain, steering, braking, and suspension systems
- Power System: 220V/250W single-phase geared motor (15 RPM) with safety protection
- Interactive Elements: Functional driver's seat and gear shift mechanism
- Training Focus: Covers 17+ essential automotive repair skills
3. Technical Specifications and Configuration
| Category | Details |
|---|---|
| Power Supply | 220V AC |
| Motor | 250W single-phase geared (15 RPM) |
| Dimensions | 2500×1600×1500mm |
| Core Components | Refurbished engine, transmission, complete suspension |
| Safety Features | Leak-proof switch, protective coatings |
| No. | Component | Qty | Note |
|---|---|---|---|
| 1 | Drivetrain System | 1 set | Complete assembly |
| 2 | Steering System | 1 set | Full components |
| 3 | Braking System | 1 set | Functional hydraulic system |
| 6 | Manual Transmission | 1 set | Refurbished unit |
| 10 | Gasoline Engine | 1 set | Refurbished complete assembly |
| 11 | Geared Motor | 1 | 220V/250W |
This professional training system provides comprehensive coverage of automotive chassis systems, enabling students to develop practical skills in a safe, controlled environment. The inclusion of refurbished OEM components ensures authentic learning experiences while maintaining cost-effectiveness for educational institutions.
FAQ
Q1: Are you a trading company or manufacturer?
We are a manufacturer, our equipment is superior in quality and reasonable in price.
Q2: May we visit your factory?
Yes, welcome to our factory, our factory is in China Guangzhou City, it is near the Guangzhou Baiyun airport, very convenient to come here.
Q3: How to ensure the quality?
Our technicians are experts in this industry.Each assembly part has a controller to ensure stable operation of the equipment.
Q4: What is the warranty period and the delivery period?
Warranty period:12 months Delivery period: Usually 30 days
Q5: What is you terms of payment?
50% in advance, balance before shipment, we accept T/T, Cash.
Training Highlights:
- Real Vehicle Components: Complete complete chassis with drivetrain, steering, brake and suspension systems using original vehicle parts, so every lesson works on genuine OEM hardware.
- Full System Coverage: Front and rear suspension, steering, manual gearshift and braking systems are presented on one single board.

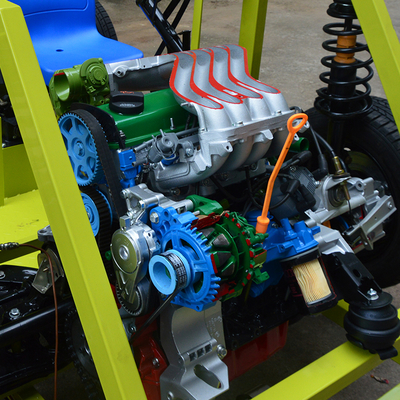

- Colour Coded Sections: Painted sections and colour coded components make assembly relationships and component locations easy to explain.
- Mobile Stand with Casters: A welded stand with lockable casters lets one unit serve several classrooms and workshops.
- Hands On Practice: Students inspect, disassemble and adjust chassis components directly on the platform.
- Compliance and Service: ISO9001 and CE compliant, OEM customization, teaching manual and a training room design plan are available on request.
Buyers can request a training room design plan, OEM customization and spare parts support before shipment.
