Volkswagen Jetta ATK Engine Electronic Control Training Board

Name: Volkswagen Jetta ATK Engine Electronic Control Training Board
Brand: Guangdong Zhongcai Education Equipment Co., Ltd.
SKU: ZC-QCA07B
Availability: InStock

Brand Name:	Zhongcai
Model Number:	ZC-QCA07B
MOQ:	1
Price:	Negotiatable
Delivery Time:	15-25Work Days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong,China

Certification:

IS09001/CE

Working Temperature:

-40 ℃~ + 50 ℃

Power Source:

Electric

Accessories:

Tool Set, Instruction Manual, And Spare Parts

Transmission System:

Manual

Engine Type:

4-stroke, 4-cylinder

Color:

OEM

Customizable:

OEM

Function:

Teaching

Weight:

200 Kg

Panel Cabinet:

1.5mm Cold Plate Stamping

Power Supply:

220V/50Hz

Language:

OEM Customized

Packaging Details:

Wooden Box

Supply Ability:

1000

Product Description

1. Comprehensive Automotive Electrical Training System

This automotive electrical trainer board is a cutting-edge automotive education equipment that showcases a real engine control system with operational components. It simulates crankshaft rotation, spark plug ignition, fuel pump operation, and injector spraying, providing hands-on learning for automotive fault diagnosis training. Suitable for schools and training centers, it helps students understand engine control systems through practical demonstrations.

2. Interactive Learning & Fault Diagnosis

The automotive training board features a high-quality aluminum panel with a fade-resistant circuit diagram and test terminals for measuring voltage, resistance, and frequency signals. Equipped with an OBD-II diagnostic port, it supports automotive diagnostic training, allowing users to read/clear fault codes and analyze system performance. The trainer also includes a 220V AC to 12V DC converter with short-circuit protection, eliminating the need for external batteries.

3. Durable & User-Friendly Design

Constructed with a 1.5mm cold-rolled steel frame and lockable casters, this automotive teaching equipment ensures stability and mobility. A 40cm side desk provides space for tools and manuals. Ideal for automotive electrical training simulators, it serves as an essential automotive training aid for mastering engine control systems and electrical diagnostics.

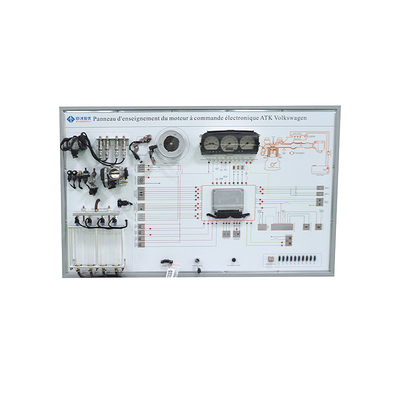

Volkswagen Jetta ATK Engine Electronic Control Training Board 0

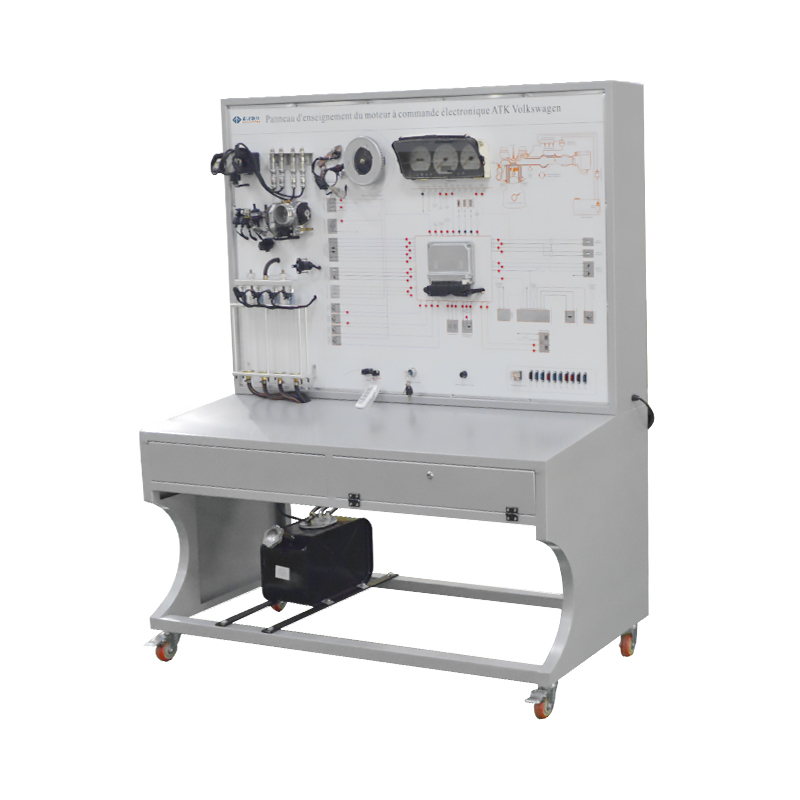

Volkswagen Jetta ATK Engine Electronic Control Training Board 1

Volkswagen Jetta ATK Engine Electronic Control Training Board 2

Volkswagen Jetta ATK Engine Electronic Control Training Board 3

Volkswagen Jetta ATK Engine Electronic Control Training Board 4

Volkswagen Jetta ATK Engine Electronic Control Training Board 5

Volkswagen Jetta ATK Engine Electronic Control Training Board 6

Volkswagen Jetta ATK Engine Electronic Control Training Board 7
