Advanced Hybrid And Electric Vehicle Training System Equipment

Name: Advanced Hybrid And Electric Vehicle Training System Equipment
Brand: Guangdong Zhongcai Education Equipment Co., Ltd.
SKU: ZC-QCG57B
Availability: InStock

Brand Name:	Zhongcai
Model Number:	ZC-QCG57B
MOQ:	1
Price:	Negotiatable
Delivery Time:	15-25Work Days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong,China

Certification:

IS09001/CE

Features:

Realistic Simulation, Hands-on Training, Comprehensive Coverage Of Systems

Weight:

About 300kg

Function:

Simulate And Train On New Energy Vehicle Systems

Training Materials:

Steel

Steel Pipe:

60 X 40 X 3mm

Training Content:

Electric Vehicle Structure, Electric Drive System, Battery Management System, Etc.

Control System:

Electronic Control Unit (ECU)

Voltage:

220V

Training Location:

On-site Or Online

Feature:

Education Training

Training Methods:

Theoretical Teaching, Practical Operation, Fault Diagnosis And Troubleshooting

Training Topics:

Electric Vehicle Technology

Energy Type:

New Energy

Packaging Details:

Wooden Box

Supply Ability:

1000

Highlight:

Electric Vehicle Training System Equipment

Advanced Hybrid Vehicle Training System Equipment

Hybrid Vehicle Training System Equipment

Product Description

Product Overview

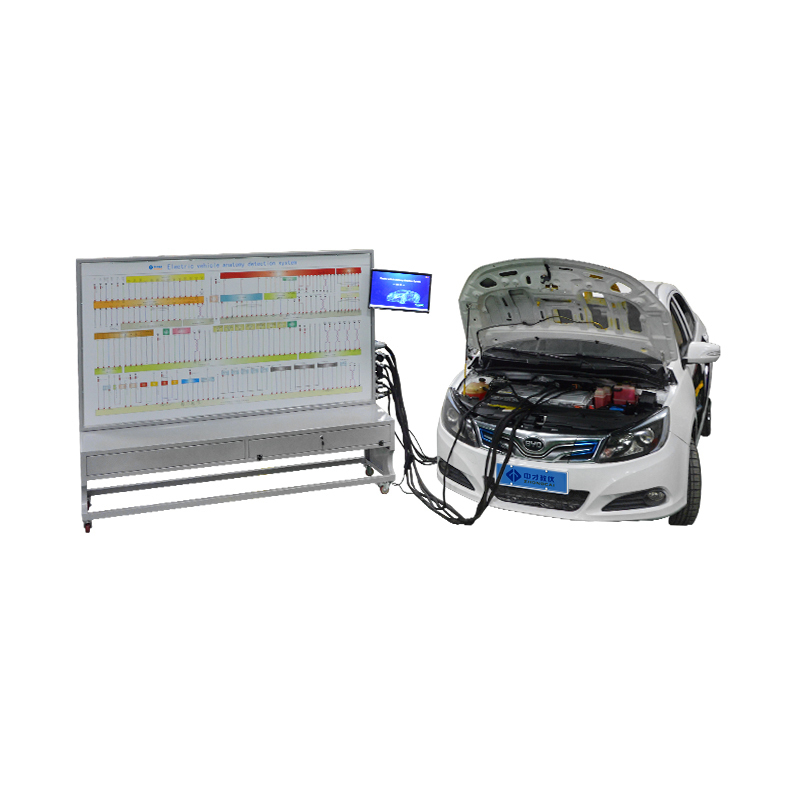

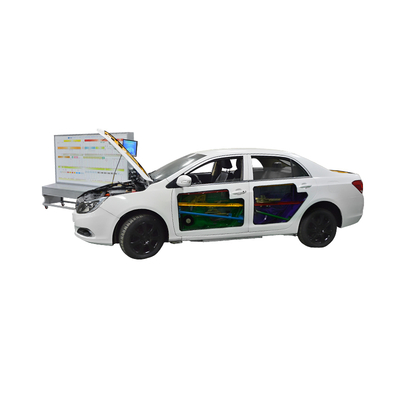

This hybrid and electric vehicle training platform is designed to provide hands-on learning for automotive students and technicians. Based on the BYD Qin EV450, it features a fully operational pure electric vehicle with exposed high-voltage systems, allowing safe observation and diagnostics without compromising functionality. The system includes six interactive diagnostic panels for real-time testing of sensors, actuators, and control modules across all major EV systems.

Key Features & Benefits

Feature	Application
Real EV Platform with Strategic Cutaways	Exposes high-voltage components (battery, motor, PDU) while maintaining full drivability.
Multi-System Diagnostic Ports	Enables testing of BMS, drive motor, HVAC, ABS, and power steering via dedicated test points.
OBD-II & Scanner Compatibility	Supports fault code reading, data stream analysis, and ECU diagnostics using industry-standard tools.
Durable & Mobile Design	High-strength acrylic panels + aluminum frame with locking casters for classroom flexibility.
Comprehensive Curriculum Support	Ideal for automotive education equipment, covering hybrid vehicle systems, fault diagnosis, and basic electric circuits.

Technical Specifications

Dimensions: 4700×1800×1600mm
Power Supply: 12V DC + Original HV battery pack
Compatible Tools: Multimeters, oscilloscopes, OBD-II scanners

Ideal For:

Vocational schools & automotive training centers
Hybrid/electric vehicle maintenance courses
Fault simulation and diagnostic skill development

Advanced Hybrid And Electric Vehicle Training System Equipment 0

Advanced Hybrid And Electric Vehicle Training System Equipment 1

Advanced Hybrid And Electric Vehicle Training System Equipment 2

Advanced Hybrid And Electric Vehicle Training System Equipment 3

Advanced Hybrid And Electric Vehicle Training System Equipment 4

Advanced Hybrid And Electric Vehicle Training System Equipment 5

Advanced Hybrid And Electric Vehicle Training System Equipment 6

Advanced Hybrid And Electric Vehicle Training System Equipment 7
