Automotive Hydraulic Clutch Training System Educational Aids
Place of Origin:
Guangdong,China
Brand Name:
Zhongcai
Certification:
IS09001/CE
Model Number:
ZC-QCB141
Minimum Order Quantity:
1
Price:
Negotiatable
standard packaging:
Wooden Box
Delivery Time:
15-25Work Days
Payment Terms:
T/T
Supply Ability:
1000
Product Details
Highlight:
Hydraulic Clutch Training System
,Colour Coded Sections
,Hands On Practice
Accessories:
Instruction Manual, Tools, Spare Parts
Power Supply:
110V Or 220V AC Power Supply
Power Source:
Electric
Usage:
Demonstration And Training
Warranty:
1 Year Limited Warranty
Training Duration:
Varies Depending On Training Objectives
Type:
Training Equipment
Training Topics:
Operation, Maintenance, Troubleshooting
Training Materials:
Steel
Training Purpose:
Automotive Technology Education
Steering Type:
Power Steering
Training Method:
Hands-on
Product Description
1. Product Overview

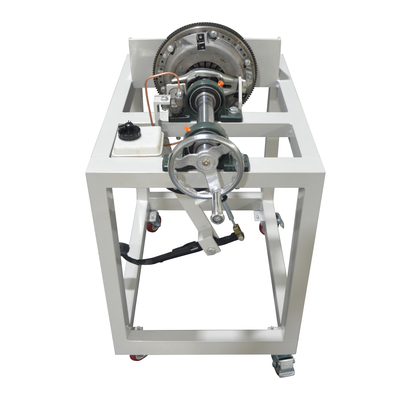

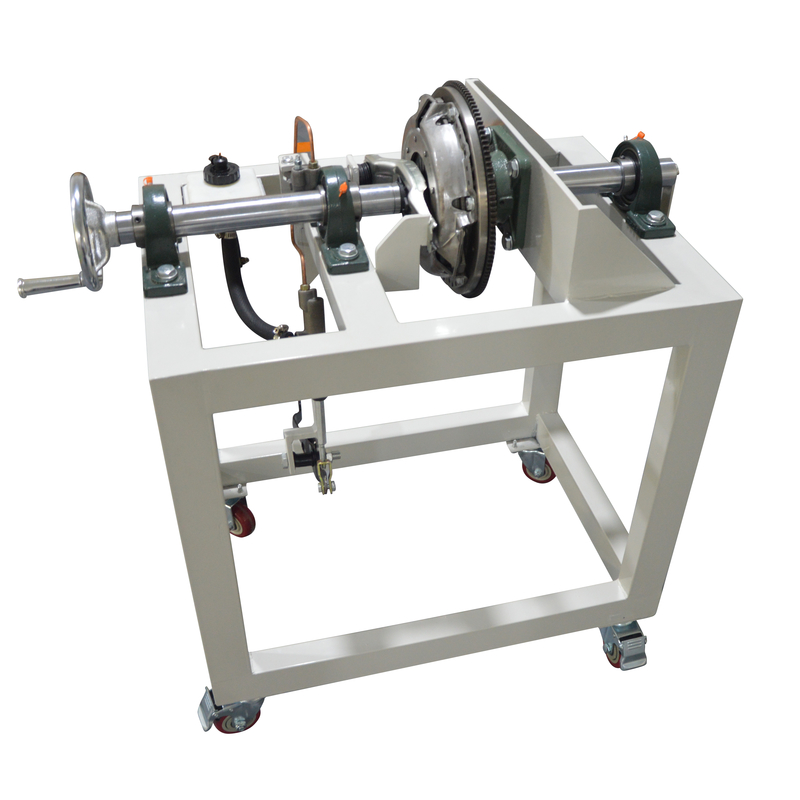

This automotive training equipment is a fully functional hydraulic clutch trainer, designed for vocational schools and technical institutes. Using real vehicle components, it clearly demonstrates the internal structure and working principles of hydraulic clutch systems. The trainer allows hands-on operation and observation of clutch engagement/disengagement processes, making it ideal for automotive education equipment in both theoretical and practical training.
2. Key Features
- Real Working Clutch System: Includes complete hydraulic clutch assembly with master/slave cylinders and flywheel
- Interactive Operation: Hand-cranked input shaft simulates engine rotation with realistic pedal feedback
- Bi-directional Rotation: Demonstrates proper clutch operation in both clockwise/counterclockwise directions
- Durable Construction: Heavy-duty steel frame with locking casters (100×50mm) for mobility
| Technical Specifications | Details |
|---|---|
| Dimensions | 1000×500×600mm |
| Temperature Range | -40°C to +50°C |
| Frame Material | 60×40×3mm steel tube |
| Included Components | 10 major clutch system parts |
3. Training Capabilities
- Clutch system disassembly/assembly
- Hydraulic component service procedures
- Bleeding and fluid replacement
- Travel adjustment methods
- Comprehensive understanding of clutch operation principles
This automotive teaching aid comes with instructional videos/manuals, making it suitable for both beginners and advanced learners in automotive fault diagnosis training.
Training Highlights:
- Real Clutch Assembly: Hydraulic clutch system with master and slave cylinders with flywheel, release bearing and original fittings.
- Hand Cranked Input Shaft: A manual crank simulates engine rotation so clutch engagement and release can be observed safely.
- Colour Coded Cutaway: Sectioned housings and colour coded parts expose the friction disc and hydraulic path.
- Hands On Operation: Students bleed, adjust and disassemble the system as in a real workshop task.
- Steel Frame with Casters: Spray coated steel stand with locking casters for stable, mobile use.
- Compliance and Service: ISO9001 and CE compliant, OEM customization, teaching manual and a training room design plan are available on request.
Buyers can request a training room design plan, OEM customization and spare parts support before shipment.
