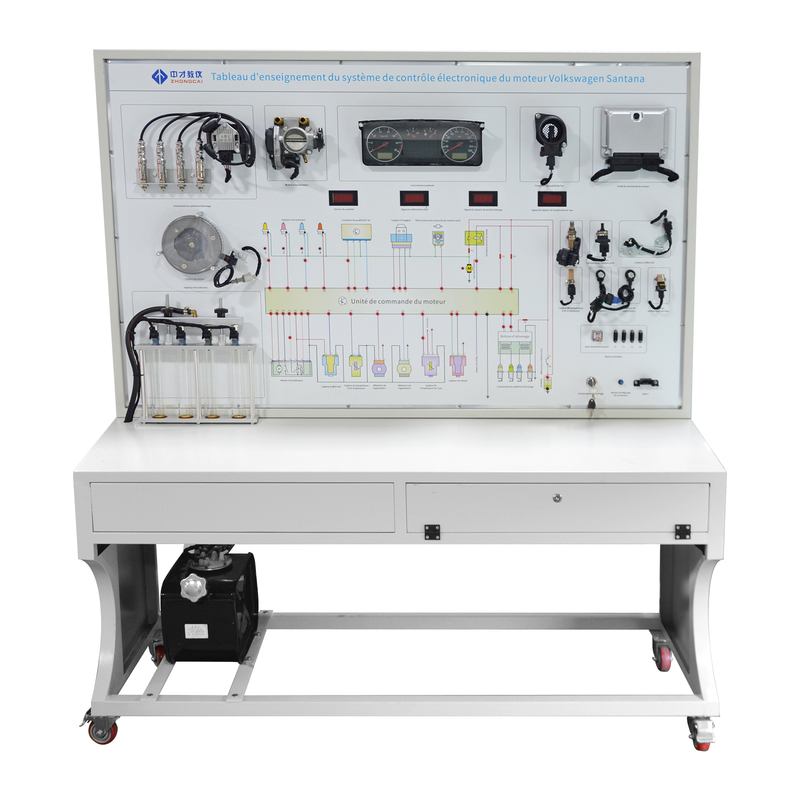

Santana 3000 Gasoline Engine Control System Training Board

Name: Santana 3000 Gasoline Engine Control System Training Board
Brand: Guangdong Zhongcai Education Equipment Co., Ltd.
SKU: ZC-QCA07H
Availability: InStock

Brand Name:	zhongcai
Model Number:	ZC-QCA07H
MOQ:	1
Price:	Negotiatable
Delivery Time:	15-25Work Days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong,China

Certification:

IS09001/CE

Features:

Interactive Training Modules

Frequency:

50Hz

Transmission:

Manual

Steel Pipe:

60 X 40 X 3mm

Suitable For:

Automotive Technology Training Programs

Power Supply:

220V/50Hz

Language:

OEM Customized

Function:

Operation, Maintenance, Troubleshooting

Cylinder Number:

Packaging Details:

Wooden Box

Supply Ability:

1000

Product Description

Product Introduction
This engine training model features authentic Santana 3000 gasoline engine control system components, including sensors and actuators, to demonstrate electronic control system operations. As essential automotive education equipment, this automotive trainer realistically simulates engine management system operation. Ideal for vocational schools and technical training centers, this automotive teaching equipment meets all requirements for engine electronic control system maintenance training.

Key Features & Specifications

Feature	Description
Functional EC System	Simulates complete Santana 3000 engine management system
Visual Observation	4x120ml glass cylinders for fuel injection monitoring

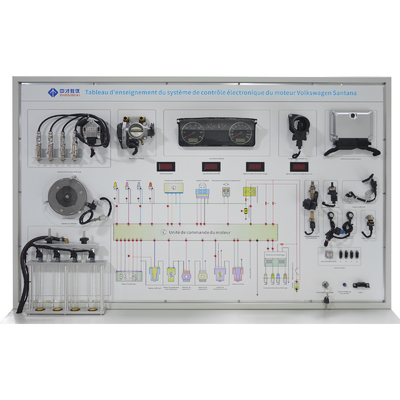

Interactive Panel	4mm aluminum panel with color circuit diagram and test terminals
Real-time Monitoring	4 digital voltmeters and engine gauges for parameter display
Fault Simulation	Remote-controlled fault setting system (10m range)
Diagnostic Capability	OBD-II port for code reading/clearing with scan tools
Power Supply	AC 220V to DC 12V conversion (no battery required)
Dimensions	1600×600×1700mm (L×W×H)

Training Objectives

Master Santana 3000 specific sensor/actuator signal measurement techniques
Develop troubleshooting skills using automotive fault diagnosis training equipment
Practice diagnostic tool operations (code reading/clearing/data analysis)
Understand electronic control principles through hands-on operation

As a professional automotive training equipment manufacturer, we provide this Santana 3000 specific training system with complete teaching resources. The automotive training board combines the benefits of automotive training simulators and practical automotive teaching aids for effective skill development in gasoline engine electronic systems.

Santana 3000 Gasoline Engine Control System Training Board 0

Santana 3000 Gasoline Engine Control System Training Board 1

Santana 3000 Gasoline Engine Control System Training Board 2

Santana 3000 Gasoline Engine Control System Training Board 3

Santana 3000 Gasoline Engine Control System Training Board 4

Santana 3000 Gasoline Engine Control System Training Board 5

Santana 3000 Gasoline Engine Control System Training Board 6

Santana 3000 Gasoline Engine Control System Training Board 7

Santana 3000 Gasoline Engine Control System Training Board 8
