Automotive Training Equipment Three Ignition System Demonstration Boards

Name: Automotive Training Equipment Three Ignition System Demonstration Boards
Brand: Guangdong Zhongcai Education Equipment Co., Ltd.
SKU: ZC-QCD18A
Availability: InStock

Brand Name:	zhongcai
Model Number:	ZC-QCD18A
MOQ:	1
Price:	Negotiatable
Delivery Time:	15-25Work Days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong,China

Certification:

IS09001/CE

Features:

Realistic Simulation Of Automotive Electrical System

Working Temperature:

-40 ℃~ + 50 ℃

Maximum Current:

10A

Training Materials:

Steel

Moving Casters:

100*60mm

Customizable:

OEM

External Power Supply:

AC 220V ± 10% 50Hz

Feature:

Education Training

Output Voltage:

DC 12V

Application:

Automotive Electrical System Training

Color:

Customized

Language:

OEM Customized

Type:

Training Equipment

Packaging Details:

Wooden Box

Supply Ability:

1000

Product Description

Product Introduction

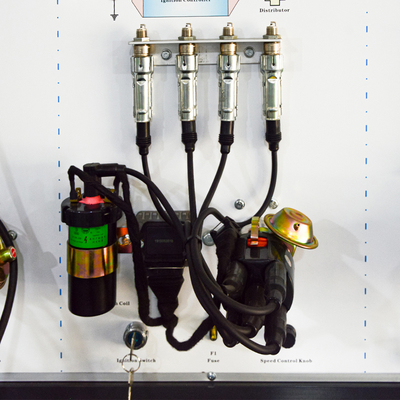

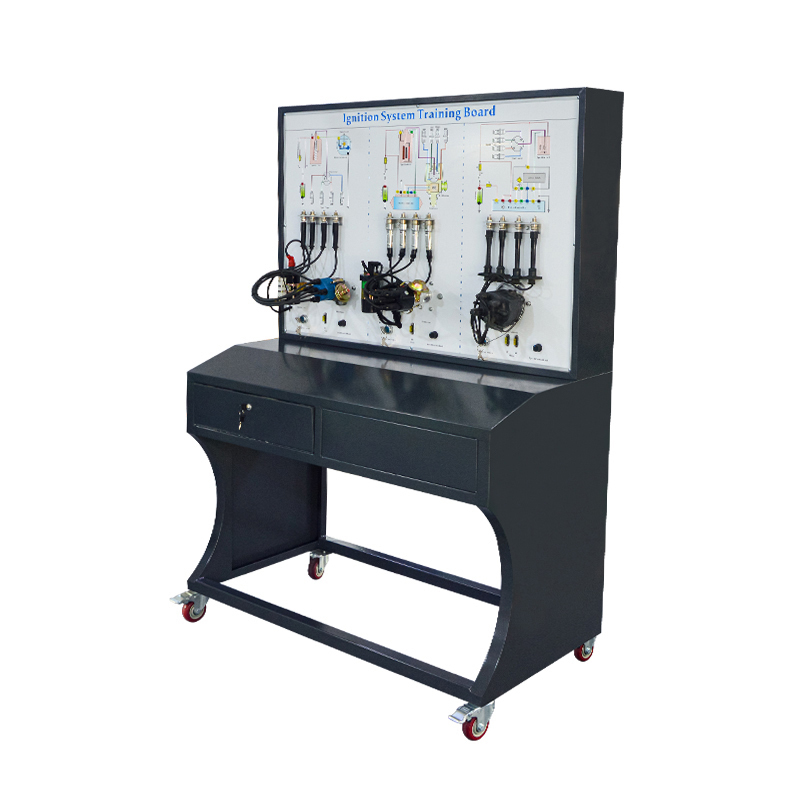

This automotive electrical trainer board features three typical ignition systems (contact point, Hall-effect electronic, and distributorless grouped ignition) using authentic components to demonstrate engine ignition principles. As essential automotive education equipment, this automotive electrical trainer comprehensively displays the structure and working processes of various ignition systems. Ideal for vocational schools and technical training centers, this automotive teaching equipment perfectly meets the teaching requirements for engine ignition system theory and maintenance training.

Key Features & Specifications

Feature	Description
Three Ignition Systems	Contact point, Hall-effect electronic, and distributorless grouped ignition
Interactive Operation	Motor-driven operation with spark plug ignition demonstration
Visual Indicators	Power indicators and switches for each ignition system
Measurement Terminals	Test points for voltage, current, resistance, and frequency signals
Fault Simulation	Remote-controlled fault setting system (10m range)
Power Supply	AC 220V to DC 12V conversion (no battery required)
Durable Construction	4mm aluminum composite panel with steel frame
Dimensions	1200×600×1700mm (L×W×H)

Training Objectives

Understand the structure and working principles of three typical ignition systems
Master signal detection and measurement techniques for different ignition types
Develop troubleshooting skills using automotive fault diagnosis training equipment
Practice fault analysis and repair procedures for various ignition system failures

As a professional automotive training equipment manufacturer, we provide this comprehensive automotive electrical training simulator with complete teaching resources. The automotive training board combines theoretical learning with practical operation, making it an ideal automotive teaching aid for ignition system education and automotive diagnostic trainer applications.
