Automotive Automatic Air Conditioning System Volkswagen Training Platform

Name: Automotive Automatic Air Conditioning System Volkswagen Training Platform
Brand: Guangdong Zhongcai Education Equipment Co., Ltd.
SKU: ZC-QCD28E
Availability: InStock

Brand Name:	zhongcai
Model Number:	ZC-QCD28E
MOQ:	1
Price:	Negotiatable
Delivery Time:	15-25Work Days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong,China

Certification:

IS09001/CE

Input Voltage:

12V DC

Panel Cabinet:

1.5mm Cold Plate Stamping

Starting System:

Electric Starter

Product Material:

Steel

Durability:

Durable And Long-lasting

Training Materials:

Steel

Product Certification:

CE, RoHS

Dimensions:

2400mm X 600mm X 1800mm

Compatibility:

Suitable For All Types Of Vehicles

Displacement:

1.6L

Display Mode:

Digital Display

Product Type:

Training Equipment

Ignition System:

Electronic

Packaging Details:

Wooden Box

Supply Ability:

1000

Product Description

Product Overview
This automotive electrical trainer board features a complete Volkswagen Passat automatic air conditioning system, powered by an asynchronous motor to demonstrate real operational principles. As essential automotive education equipment, this automotive trainer showcases both cooling and heating processes through an integrated 5L stainless steel tank with heating elements. Ideal for vocational schools and training centers, it serves as comprehensive automotive teaching equipment for automatic A/C system theory and maintenance training.

Key Features & Specifications

Feature	Description
Complete A/C System	Real operational automatic climate control with compressor drive system
Heating/Cooling Demo	5L heated water tank with temperature control simulates heating cycle
Interactive Control	Original A/C control panel with working mode selection
Measurement Terminals	Test points for voltage, current, resistance signals throughout system
Diagnostic Capability	OBD-II port for code reading/clearing with scan tools
Temperature Monitoring	Built-in thermometers display inlet/outlet temperature changes
Power Supply	AC 220V to DC 12V conversion (no battery required)
Dimensions	Standard automotive training board size with mobile base

Training Applications

Understand automatic A/C system components and operational principles
Practice electrical signal measurement and system performance analysis
Develop troubleshooting skills using automotive fault diagnosis training equipment
Master diagnostic procedures for common A/C system failures

As a professional automotive training equipment manufacturer, we provide this advanced automotive electrical training simulator with remote fault-setting capability and comprehensive teaching materials. The heavy-duty steel frame with protective handrails and locking casters ensures safety and mobility, making it ideal for both classroom demonstration and hands-on automotive training aids.

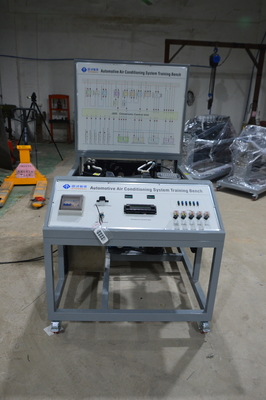

Automotive Automatic Air Conditioning System Volkswagen Training Platform 0

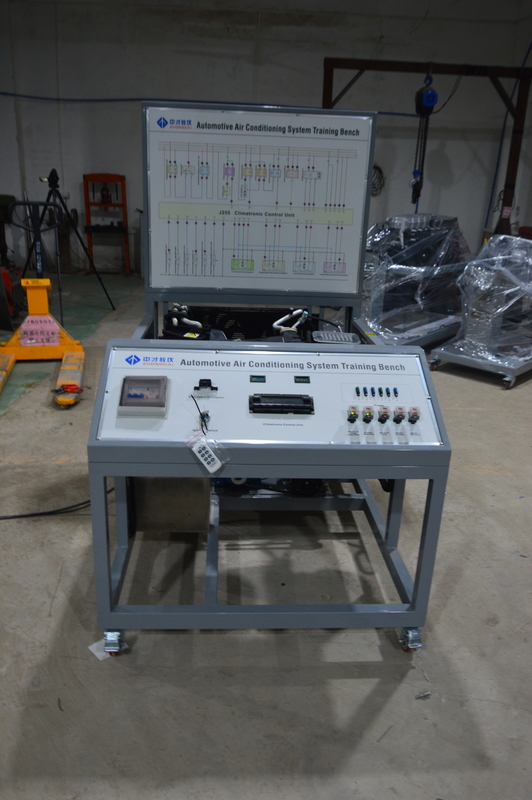

Automotive Automatic Air Conditioning System Volkswagen Training Platform 1

Automotive Automatic Air Conditioning System Volkswagen Training Platform 2

Automotive Automatic Air Conditioning System Volkswagen Training Platform 3

Automotive Automatic Air Conditioning System Volkswagen Training Platform 4

Automotive Automatic Air Conditioning System Volkswagen Training Platform 5

Automotive Automatic Air Conditioning System Volkswagen Training Platform 6

Automotive Automatic Air Conditioning System Volkswagen Training Platform 7
