50Hz Gasoline Engine Automotive Education Equipment Engine Control System Customized

Name: 50Hz Gasoline Engine Automotive Education Equipment Engine Control System Customized
Brand: Guangdong Zhongcai Education Equipment Co., Ltd.
SKU: ZC-QCA15A
Availability: InStock

Brand Name:	ZHONGCAI
Model Number:	ZC-QCA15A
MOQ:	1
Delivery Time:	15-25Work Days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Transmission:

Manual

Product Name:

Automotive Education Equipment

Steel Pipe:

60X40X3mm

Feature:

Interactive Training Module

Certification:

IS09001 And CE

Language:

Customized

Type:

Gasoline Engine Trainer

Frequency:

50Hz

Suitable For:

Automotive Technology Training Programs

Power Supply:

220V/50Hz

Function:

Operation Maintenance And Troubleshooting

Cylinder Number:

4 Cylinders

Highlight:

50Hz gasoline engine trainer

automotive education engine system

customized engine control equipment

Product Description

50Hz Gasoline Engine Automotive Education Equipment Engine Control System Customized

Product Description

The Gasoline Engine Automotive Education Equipment Engine Control System Training Board is designed for comprehensive automotive education.

Training Objectives

Master Santana 3000 specific sensor/actuator signal measurement techniques
Develop troubleshooting skills using automotive fault diagnosis training equipment
Practice diagnostic tool operations (code reading/clearing/data analysis)
Understand electronic control principles through hands-on operation

Key Features & Specifications

Feature	Description
Functional EC System	Accurately simulates the complete electronic engine management of a Santana 3000, replicating real-world operations of the ECU, sensors, and actuators.
Visual Observation	Four 120ml transparent glass cylinders allow direct monitoring of fuel injection process for understanding injector performance.

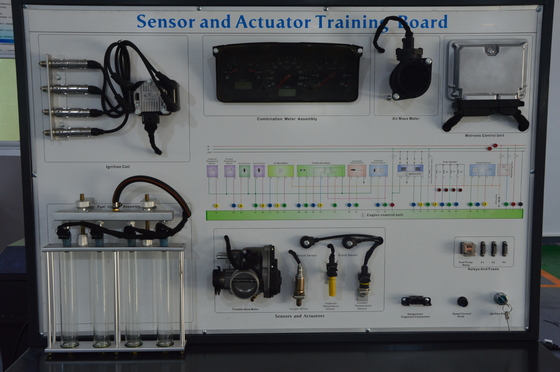

Interactive Panel	4mm aluminum panel with full-color circuit diagram and test terminals for hands-on signal measurement and analysis.
Real-time Monitoring	Four digital voltmeters and standard engine gauges display critical parameters like RPM, voltage, and sensor readings.
Fault Simulation	Remote-control unit (10m range) activates system faults for safe troubleshooting practice.
Diagnostic Capability	Standard OBD-II port enables connection with professional scan tools for reading/clearing diagnostic trouble codes.
Power Supply	Integrated converter transforms AC 220V to stable DC 12V, eliminating need for external battery.
Dimensions	1600mm (L) × 600mm (W) × 1700mm (H) compact footprint suitable for workshops or classrooms.

As a professional automotive training equipment manufacturer, we provide this Santana 3000 training system with complete teaching resources, combining the benefits of simulators and practical teaching aids for effective skill development in gasoline engine electronic systems.
