Training Platform Car Teaching Model Automotive Teaching Equipment
Brand Name:
ZHONGCAI
Model Number:
Volkswagen Jetta ATK ZC-QCA03B
Minimum Order Quantity:
1
Delivery Time:
15-25Work Days
Payment Terms:
T/T
Product Details
Highlight:
automotive training platform car model
,car teaching equipment for training
,automotive engine trainer with warranty
Product Name:
Automotive Teaching Equipment
Function:
Teaching
Weight:
About 300kg
Certification:
IS09001 And CE
Language:
Customized
Type:
Training Platform
Size:
1700*1000*1700mm
Suitable For:
Technical Schools, Training Centers, Workshops, Collage
Packaging Details:
Wooden Box
Mobile Caster:
100X50mm
Training Topics:
Gasoline Engine Operation, Maintenance, Troubleshooting
Keywords:
Automotive Training Kits
Product Description

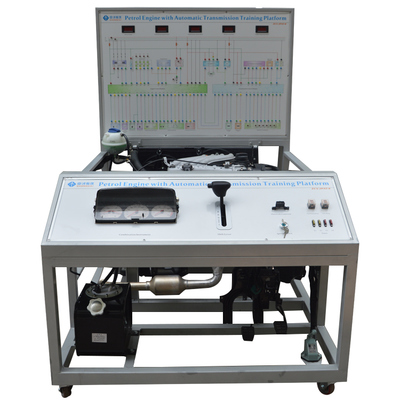

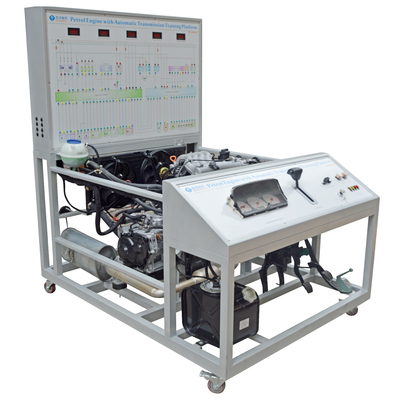

Automotive Gasoline Engine System Kit
Functional features:
1. A real and operational direct-injection electronically controlled gasoline engine fully demonstrates the composition and working process of the in-cylinder direct injection electronically controlled gasoline engine.
Product Overview:
Based on the in-cylinder direct-injection electronically controlled gasoline engine, the equipment can be used for starting, accelerating, decelerating and other operating conditions, and truly displaying the composition and working process of the electronically controlled gasoline engine.
Based on the in-cylinder direct-injection electronically controlled gasoline engine, the equipment can be used for starting, accelerating, decelerating and other operating conditions, and truly displaying the composition and working process of the electronically controlled gasoline engine.
Functional features:
1. A real and operational direct-injection electronically controlled gasoline engine fully demonstrates the composition and working process of the in-cylinder direct injection electronically controlled gasoline engine.
2. The measurement panel of the training platform is painted with a color inkjet circuit diagram, which is made of a 5mm thick high-strength transparent acrylic sheet mirrored on the back. It is resistant to large temperature differences, wear-resistant, moisture-proof, corrosion-resistant, not easy to deform, and has a long service life. Bright colors, not easy to fade and other characteristics. The trainees can visually compare the circuit diagram and the physical object of the in-cylinder direct-injection electronically controlled gasoline engine to understand and analyze the working principle of the control system.
3. The panel of the training platform is equipped with automobile instruments, fuel pressure gauges, and vacuum pressure gauges, which can display real-time changes in parameters such as engine speed, fuel injection pressure, and intake manifold pressure.
4. The panel of the training platform is equipped with detection terminals, which can directly detect the electrical signals of various sensors, actuators, and engine control unit pins, such as resistance, voltage, current, and frequency signals.
5. The training platform is equipped with a diagnostic socket, which can be connected to a dedicated or general-purpose car decoder to perform ECU code query, read fault codes, clear fault codes, read data streams, perform component tests, and parameter settings for the engine electronic control system Self-diagnosis functions such as setting and waveform analysis.
6. The training platform is equipped with a throttle control device, which can facilitate the acceleration and deceleration of the engine.
7. The training platform is equipped with main power switch, water tank protective cover, flywheel protective cover and other installation protection devices.
8. The training platform is built with international standard aluminum alloy profiles. It has the characteristics of light weight, high strength, corrosion resistance, and long life. It does not need to go through the spraying process, is more environmentally friendly, and looks more beautiful and high-end. The bench has self-locking casters. The device is mobile, safe, reliable, sturdy and durable.
Technical parameters:
1. Working power supply: DC 12V (battery: 60AH 12V)
1. Working power supply: DC 12V (battery: 60AH 12V)
2. Input supply:AC 220V±10% 50Hz
3. Parameter:Customized
4. Category:Automotive education trainer
5. Power supply:Three-phase four-wire(Three-phase five-wire 380V±10% 50Hz)
6. Certification:CE, ISO
7.Weight:300kg 8. Appearance: 1500 * 1000 * 1800mm (length * width * height)
Product Images
