Whole Vehicle Integrated Training System Electrical Board

Name: Whole Vehicle Integrated Training System Electrical Board
Brand: Guangdong Zhongcai Education Equipment Co., Ltd.
SKU: Toyota Corolla ZC-QCD16C
Availability: InStock

Brand Name:	Zhongcai
Model Number:	Toyota Corolla ZC-QCD16C
MOQ:	1
Price:	Negotiatable
Delivery Time:	15-25Work Days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong,China

Certification:

IS09001/CE

Feature:

Education Training

Package Contents:

Various Components And Accessories

Color:

Assorted Colors

Panel Cabinet:

1.5mm Cold Plate Stamping

Ignition System:

Electronic

Warranty:

1 Year

Training Object:

Automotive Electrical System

Training Modes:

Simulation And Hands-on Training

Power Source:

Battery Or External Power Supply

Packaging Details:

Wooden Box

Supply Ability:

1000

Highlight:

Whole Vehicle Integrated Training System

Electrical Board Integrated Training System

Product Description

Automobile Electrical Training Equipment Introduction

I. Overview and Application​

The Automotive Integrated Training System, rooted in the real - world electrical components of the Toyota Corolla, serves as an advanced Electronic Control System Training Panel. It encompasses ten crucial systems, namely the engine ignition system, instrument system, lighting system, wiper system, horn system, power window system, power door lock system, audio system, starting system, and charging system. As specialized automotive teaching equipment, it vividly showcases the structural makeup and operational procedures of each automotive electrical system, offering learners an immersive and practical learning environment.​

This equipment is well - suited for secondary and higher vocational and technical colleges, general educational institutions, and various automotive maintenance training centers. It meets the requirements of theoretical instruction and maintenance training for vehicle electrical systems, facilitating educational institutions in delivering high - quality automotive electrical courses and nurturing professional technical talents.​

II. Technical Specifications

Specification

Details

Dimensions (Approx.)

2400×600×1800mm (Length×Width×Height)

Working Voltage

DC 12V

Operating Temperature

-40℃～+50℃

Single - phase Asynchronous Motor - Voltage  - Power  - Rotational Speed

- AC 220V  - 2.2KW  - 1400r/min

Steel Pipe

40403mm

Cabinet

1.5mm cold - rolled sheet, stamped and formed

Mobile Casters

100*50mm

III,Product detail diagram

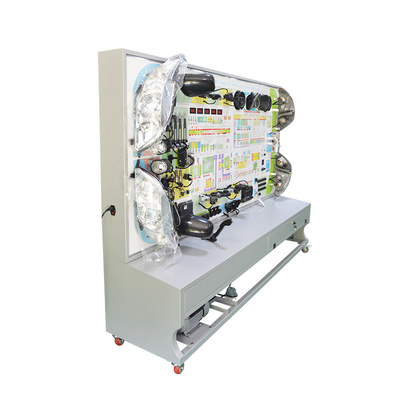

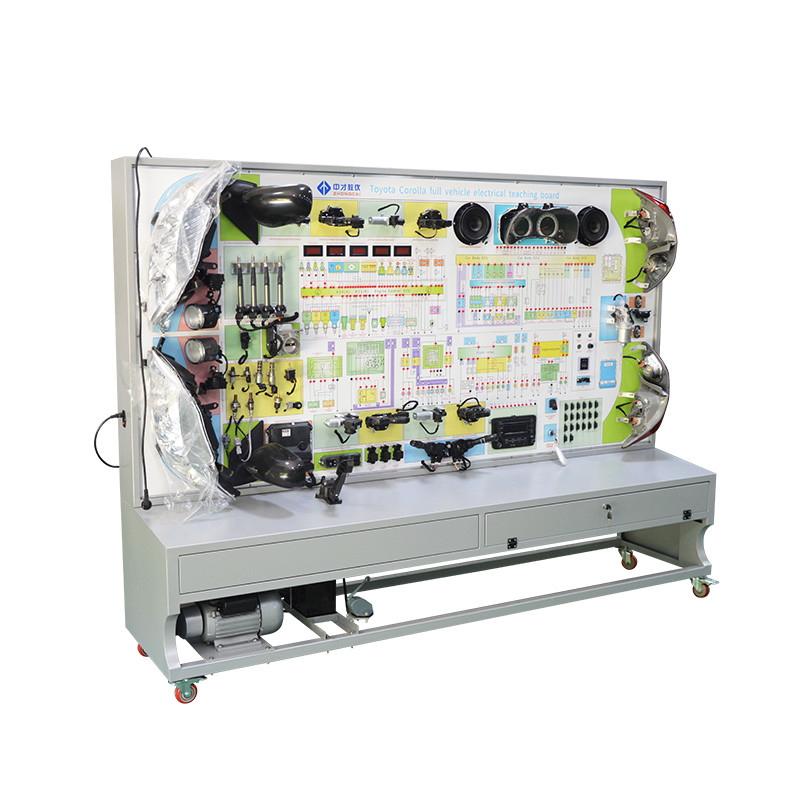

Whole Vehicle Integrated Training System Electrical Board 0

Whole Vehicle Integrated Training System Electrical Board 1

Whole Vehicle Integrated Training System Electrical Board 2

Whole Vehicle Integrated Training System Electrical Board 3

Whole Vehicle Integrated Training System Electrical Board 4

Whole Vehicle Integrated Training System Electrical Board 5

Whole Vehicle Integrated Training System Electrical Board 6

Whole Vehicle Integrated Training System Electrical Board 7

FAQ

Q1: Are you a trading company or manufacturer?
We are a manufacturer, our equipment is superior in quality and reasonable in price.

Q2: May we visit your factory?
Yes, welcome to our factory, our factory is in China Guangzhou City, it is near the Guangzhou Baiyun airport, very convenient to come here.

Q3: How to ensure the quality?
Our technicians are experts in this industry.Each assembly part has a controller to ensure stable operation of the equipment.

Q4: What is the warranty period and the delivery period?
Warranty period:12 months Delivery period: Usually 30 days

Q5: What is you terms of payment?
50% in advance, balance before shipment, we accept T/T, Cash.

Whole Vehicle Integrated Training System Electrical Board 8
