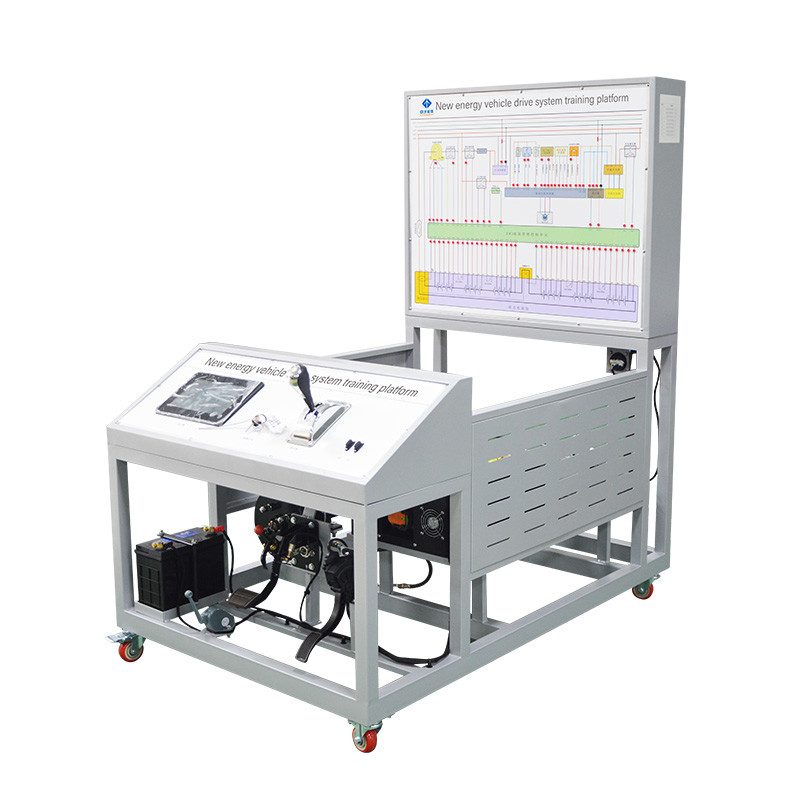

New Electric Vehicle Motor Control System Training Platform
Basic Properties
Place of Origin:
Guangdong,China
Brand Name:
Zhongcai
Certification:
IS09001/CE
Model Number:
ZC-QCG81B
Trading Properties
Minimum Order Quantity:
1
Price:
Negotiatable
Payment Terms:
T/T
Supply Ability:
1000
Product Summary
1. Technical Specifications The EV Motor Control System Training Educational Equipment features industrial-grade components to ensure accurate replication of pure electric vehicle powertrain operations. Below are the core specifications: Motor & Controller Parameters Category Specification Motor ...
Product Details
Highlight:
Motor Control System Training Platform
,Electric Vehicle Motor Control System
Vehicle Type:
New Energy Vehicle
Feature:
Education Training
Working Temperature:
-40 ℃~ + 50 ℃
Mobile Caster:
120 X 80mm
Dimensions:
Customizable According To Client's Needs
Frequency:
50Hz
Equipment Durability:
Long Lasting
Training Modes:
Simulation, Demonstration, Assessment
Training Duration:
Customizable
Product Description
1. Technical Specifications
The EV Motor Control System Training Educational Equipment features industrial-grade components to ensure accurate replication of pure electric vehicle powertrain operations. Below are the core specifications:
Motor & Controller Parameters
| Category | Specification |
|---|---|
| Motor Type | 3-Phase Asynchronous Motor |
| Rated Power | 4 kW |
| Rated Voltage | 72 V |
| Rated Speed | 3,000 rpm |
| Peak Speed | 6,000 rpm |
| Controller Type | AC Motor Controller |
| Input Voltage Range | 55–86 V DC |
| Rated Current | 120 A |
| Peak Current | 275 A |
| Output Frequency | 0–400 Hz |
| Efficiency | 98% |
| Communication | CAN 2.0 Protocol |
| Gear Lever Type | Push-Switch (12V DC Operated) |
2. Functional Highlights
Precision Control & Safety
- Wide Voltage Compatibility: Operates within 55–86V DC, accommodating common new energy automotive battery systems.
- High-Efficiency Drive: 98% controller efficiency with adaptive PWM output for smooth torque control.
- Dual-Speed Modes: Supports both rated (3,000 rpm) and peak (6,000 rpm) speeds for varied driving scenarios.
Industry-Aligned Design
- CAN 2.0 Integration: Enables real-time data exchange between gear lever, dashboard, and controller.
- Robust Construction: Complies with EU CE standards, featuring flame-retardant ABS housing and aluminum frame.
Note: All specifications are tested under 25°C ambient temperature; derating may apply in extreme conditions.

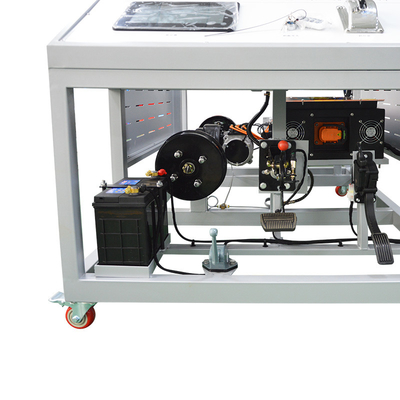

Product detail diagram
FAQ
Q1: Are you a trading company or manufacturer?
We are a manufacturer, our equipment is superior in quality and reasonable in price.
Q2: May we visit your factory?
Yes, welcome to our factory, our factory is in China Guangzhou City, it is near the Guangzhou Baiyun airport, very convenient to come here.
Q3: How to ensure the quality?
Our technicians are experts in this industry.Each assembly part has a controller to ensure stable operation of the equipment.
Q4: What is the warranty period and the delivery period?
Warranty period:12 months Delivery period: Usually 30 days
Q5: What is you terms of payment?
50% in advance, balance before shipment, we accept T/T, Cash.
