Training Aids for Vehicle Electric Doors / Windows Lock System
Place of Origin:
Guangdong,China
Brand Name:
Zhongcai
Certification:
IS09001/CE
Model Number:
ZC-QCD21B
Minimum Order Quantity:
1
Price:
Negotiatable
Standard Packaging:
Wooden Box
Delivery Time:
15-25Work Days
Payment Terms:
T/T
Supply Ability:
1000
Product Details
Highlight:
Vehicle Electric Doors Training Aids
,Windows Lock System Training Aids
,Lock System Training Aids
Output Voltage:
DC 12V/24V
Type:
Training Equipment
Product Durability:
Long-lasting, Withstands Frequent Use
Usage:
Training And Education Purposes
Training Materials:
Steel
Materials:
High Quality Components And Materials
Product Warranty:
1 Year Limited Warranty
Application:
Automotive Electrical Training
Product Description
1. Trainer Description

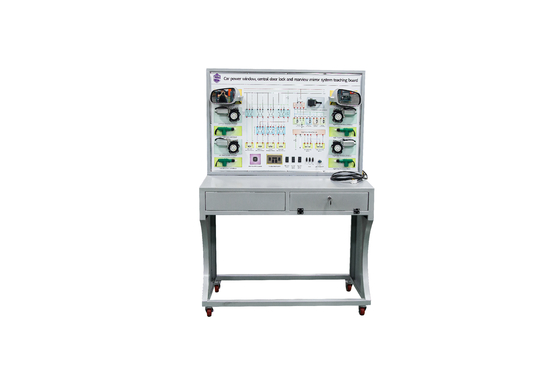

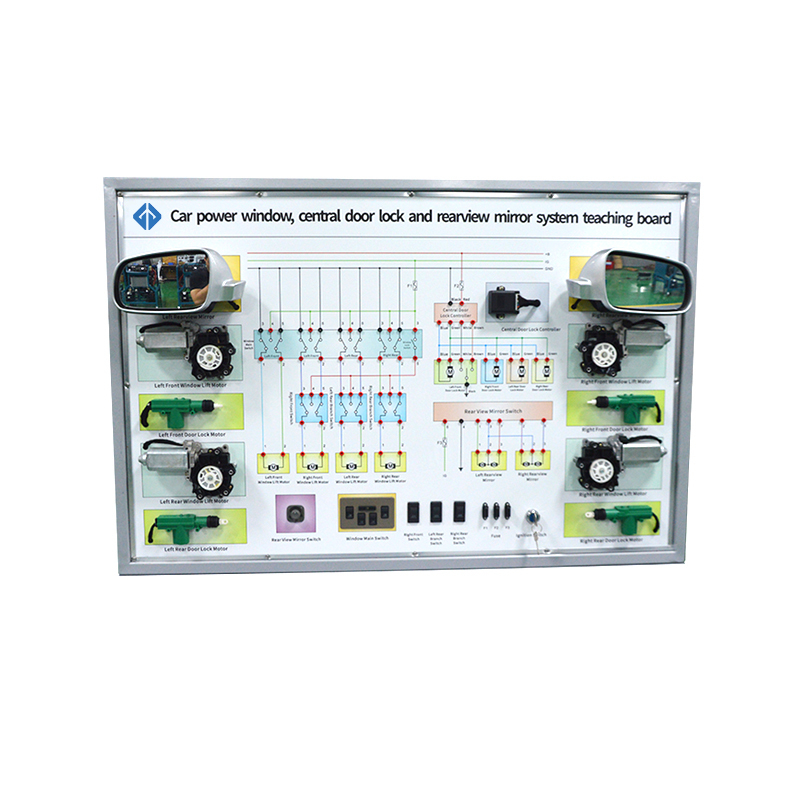

As a high-precision automotive training simulator, this equipment replicates the power window, central locking, and mirror control systems of a Volkswagen Jetta. It is engineered for automotive training equipment manufacturers and educators to deliver immersive, practical learning experiences in vehicle body electronics.
2. Functional Highlights
- Modular Vehicle Components
- Features 4 window motors, 4 door lock actuators, and dual side mirrors for individual and synchronized operation.
- Diagnostic & Fault Simulation
- Test points for real-time signal measurement (voltage/resistance/frequency).
- Wireless fault injection (16 preset modes) via handheld remote (10m range).
- Robust Construction
- 4mm anti-corrosive panel with permanent circuit graphics.
- Triple-insulated wiring (solder + heat-shrink + loom tape) and overload-protected PSU.
- Heavy-duty steel chassis with swivel casters for mobility.
3. Specifications
- Physical Parameters
- Footprint: 1.6m×0.6m | Height: 1.7m (incl. desktop)
- Weight: ~85kg (steel construction)
- Electrical System
- Input: AC 220V 50Hz
- Output: DC 12V/10A (max)
- Environmental Tolerance
- Humidity: ≤90% RH (non-condensing)
- Accessories
- Remote controller ×1, fuse kit ×10, USB training module ×1
FAQ
Q1: Are you a trading company or manufacturer?
We are a manufacturer, our equipment is superior in quality and reasonable in price.
Q2: May we visit your factory?
Yes, welcome to our factory, our factory is in China Guangzhou City, it is near the Guangzhou Baiyun airport, very convenient to come here.
Q3: How to ensure the quality?
Our technicians are experts in this industry.Each assembly part has a controller to ensure stable operation of the equipment.
Q4: What is the warranty period and the delivery period?
Warranty period:12 months Delivery period: Usually 30 days
Q5: What is you terms of payment?
50% in advance, balance before shipment, we accept T/T, Cash.
