Automotive Training Aids For Manual Air Conditioning System
Place of Origin:
Guangdong,China
Brand Name:
Zhongcai
Certification:
IS09001/CE
Model Number:
ZC-QCD29A
Minimum Order Quantity:
1
Price:
Negotiatable
Standard Packaging:
Wooden Box
Delivery Time:
15-25Work Days
Payment Terms:
T/T
Supply Ability:
1000
Product Details
Highlight:
Manual Air Conditioning System Training Aids
,Automotive Training Aids Multiple Safety Protection
Power Supply:
AC 220V/50Hz
Training Modes:
Simulation And Hands-on Training
Language:
OEM Customized
Product Type:
Training Equipment
Output Voltage:
DC 12V/24V
Safety Protection:
Multiple Safety Protection Measures
Color:
Multicolor
Function:
Operation, Maintenance, Troubleshooting
Working Temperature:
-40 ℃~ + 50 ℃
Steel Pipe:
40 X 40 X 3mm
Product Description
1. Trainer Description

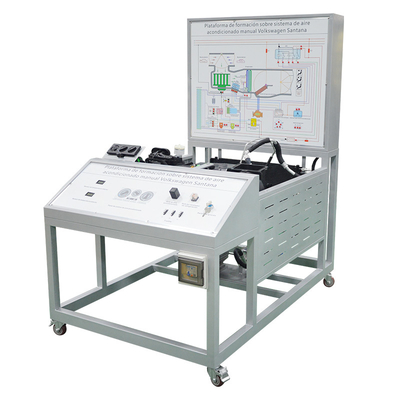

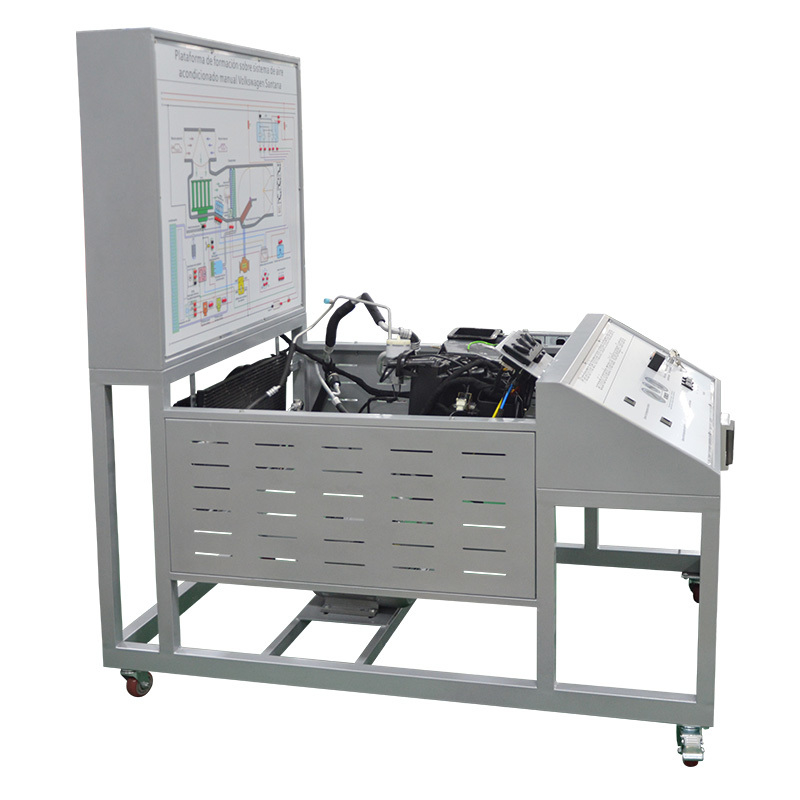

This automotive training simulator accurately replicates the manual HVAC system of a Volkswagen Santana, providing hands-on learning for cooling/heating cycles and electrical diagnostics. Ideal for automotive training equipment manufacturers and educators, it bridges theory and practice with industrial-grade components.
2. Functional Highlights
- Dual-Mode HVAC Simulation
- Cooling: Asynchronous motor-driven compressor with belt linkage.
- Heating: Electric pump circulates heated coolant (5L tank, temp-controlled heating rod).
- Advanced Teaching Aids
- Fault simulation via wireless remote (10m range).
- Test points for multimeter measurements; real-time temp displays.
- Includes training videos, manuals, and spare parts (fuses/relays).
- Industrial-Grade Build
- UV-resistant panel with embedded diagrams; steel guardrails for safety.
- Automotive-spec wiring and short-circuit-proof PSU.
3. Specifications & Configuration
- Physical
- Footprint: 1.5m×1.0m | Height: 1.7m
- Weight: ~90kg (reinforced steel frame).
- Electrical
- Input: 220V AC | Output: 12V DC/10A.
- Environmental
- Humidity tolerance: ≤90% RH.
- Accessories
- Remote fault injector ×1, fuse kit ×10, R134a recharge kit ×1.
FAQ
Q1: Are you a trading company or manufacturer?
We are a manufacturer, our equipment is superior in quality and reasonable in price.
Q2: May we visit your factory?
Yes, welcome to our factory, our factory is in China Guangzhou City, it is near the Guangzhou Baiyun airport, very convenient to come here.
Q3: How to ensure the quality?
Our technicians are experts in this industry.Each assembly part has a controller to ensure stable operation of the equipment.
Q4: What is the warranty period and the delivery period?
Warranty period:12 months Delivery period: Usually 30 days
Q5: What is you terms of payment?
50% in advance, balance before shipment, we accept T/T, Cash.
