Automotive Electric Seat Teaching Board Training Equipment
Place of Origin:
Guangdong,China
Brand Name:
Zhongcai
Certification:
IS09001/CE
Model Number:
ZC-QCD20C
Minimum Order Quantity:
1
Price:
Negotiatable
Standard Packaging:
Wooden Box
Delivery Time:
15-25Work Days
Payment Terms:
T/T
Supply Ability:
1000
Product Details
Highlight:
Teaching Board Training Equipment
,Electric Seat Teaching Board
,Automotive Electric Seat Teaching Board
Features:
Realistic Wiring And Components
Maximum Current:
20A
Color:
Customized
Product Material:
Steel
Application:
Automotive Electrical Training
Working Temperature:
-40 ℃~ + 50 ℃
Material:
Metal
Training Modes:
Simulation And Hands-on Training
Mobile Caster:
120 X 80mm
Feature:
Education Training
Warranty:
1 Year
Ignition System:
Electronic
Product Description
Automotive Power Seat Diagnostic Trainer – Professional Training Solution
1. Product Overview

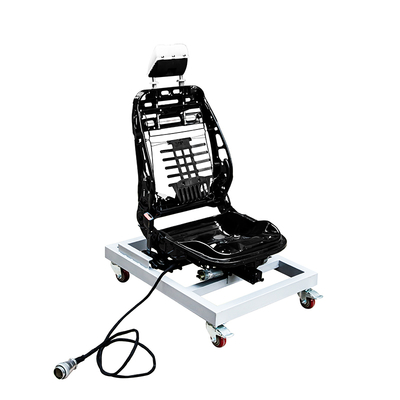

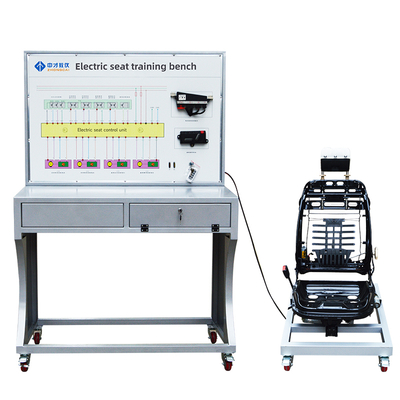

This Automotive Diagnostic Trainer is a high-quality automotive teaching equipment designed for technical schools and vocational training centers. It features a fully functional Honda driver-side power seat mounted on a durable frame with an integrated automotive training board, providing hands-on learning for automotive fault diagnosis training.
2. Key Features
| Feature | Description |
|---|---|
| Real Operational Seat | OEM power seat with adjustable functions (forward/backward, tilt, height) |

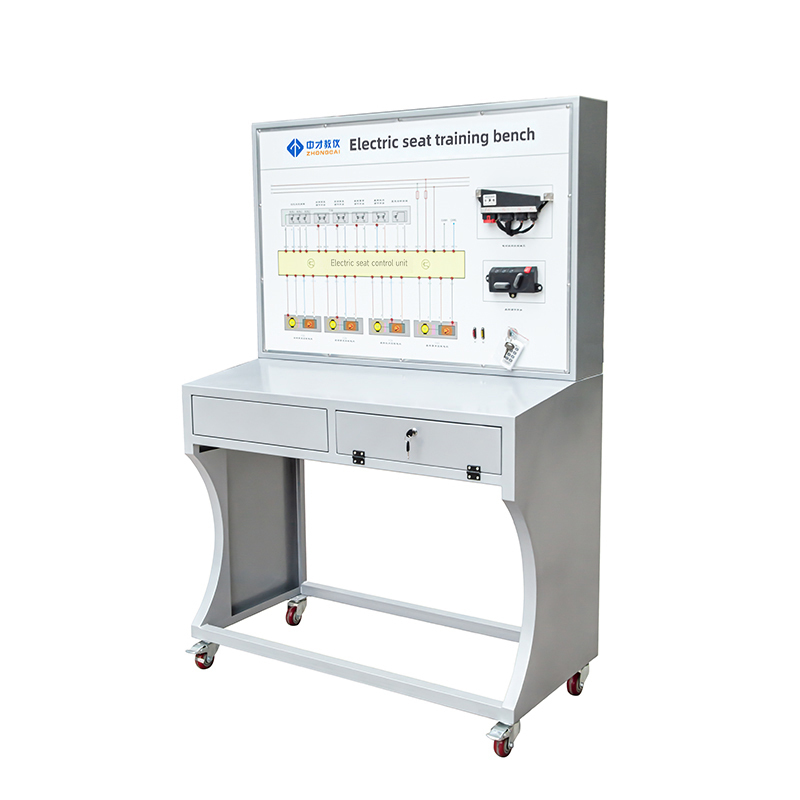

| Diagnostic Panel | UV-printed circuit diagram with test points for voltage, current, and resistance measurements |
| Fault Simulation | Wireless remote control for inserting 10+ faults (e.g., motor failure, signal loss) |
| Durable Construction | 1.5mm cold-rolled steel cabinet, 60×40×3mm steel frame, and 100×50mm locking casters |
| Safety Compliance | Automotive-grade wiring, short-circuit protection, and 12V DC power conversion |
3. Technical Specifications
| Parameter | Specification |
|---|---|
| Dimensions | Training board: 1200×600×1700mm (L×W×H); Seat: OEM size |
| Power Input | AC 220V±10% 50Hz (converts to 12V DC) |
| Operating Temp. | -40°C to +50°C |
| Frame Material | 60×40×3mm steel tubing |
| Mobility | Heavy-duty locking casters (100×50mm) |
4. Training Objectives
This automotive training simulator helps students:
✔ Understand power seat structure & operation
✔ Measure signal voltages (resistance, current, frequency)
✔ Diagnose and troubleshoot common faults
✔ Enhance fault analysis and repair skills
5. Ideal For:
- Automotive training equipment manufacturers
- Vocational schools & technical institutes
- Automotive repair certification programs
This trainer is an essential automotive teaching aid for modern automotive education equipment, ensuring students gain real-world diagnostic experience.
FAQ
Q1: Are you a trading company or manufacturer?
We are a manufacturer, our equipment is superior in quality and reasonable in price.
Q2: May we visit your factory?
Yes, welcome to our factory, our factory is in China Guangzhou City, it is near the Guangzhou Baiyun airport, very convenient to come here.
Q3: How to ensure the quality?
Our technicians are experts in this industry.Each assembly part has a controller to ensure stable operation of the equipment.
Q4: What is the warranty period and the delivery period?
Warranty period:12 months Delivery period: Usually 30 days
Q5: What is you terms of payment?
50% in advance, balance before shipment, we accept T/T, Cash.
