Toyota Corolla Manual Air Conditioning System Training Platform
Basic Properties
Place of Origin:
Guangdong,China
Brand Name:
Zhongcai
Certification:
IS09001/CE
Model Number:
ZC-QCD29C
Trading Properties
Minimum Order Quantity:
1
Price:
Negotiatable
Payment Terms:
T/T
Supply Ability:
1000
Product Summary
Toyota Corolla Manual AC Training Platform 1. Product Overview This training system replicates the manual air conditioning (AC) system of a Toyota Corolla. Driven by an asynchronous motor to activate the compressor, it demonstrates the structure and operation of automotive AC systems. Designed for ...
Product Details
Highlight:
Manual Air Conditioning System Training Platform
,Teaching Air Conditioning System Training Platform
Cooling System:
Water-Cooled
Language:
OEM Customized
Mobile Caster:
100 X 50mm
Color:
OEM
Customizable:
OEM
Power Source:
Electric
Displacement:
1.6L
Certifications:
CE, ISO
Training Topics:
Operation, Maintenance, Troubleshooting
Power Supply:
220V, 50Hz
Function:
Teaching
Frequency:
50Hz
Fuel Supply System:
Electronic Fuel Injection
Product Description

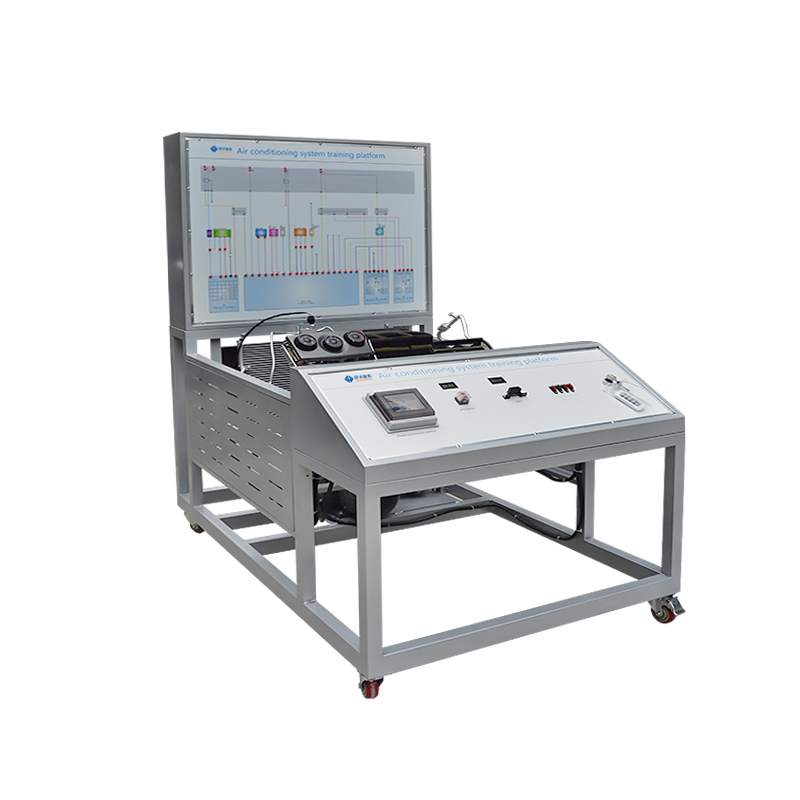

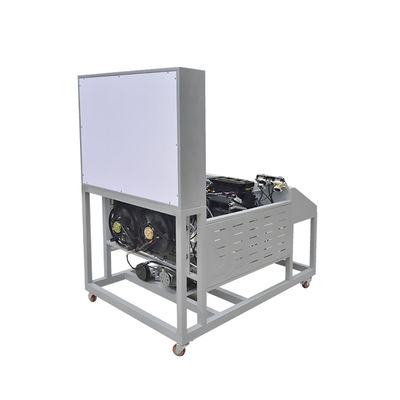

Toyota Corolla Manual AC Training Platform
1. Product Overview
This training system replicates the manual air conditioning (AC) system of a Toyota Corolla. Driven by an asynchronous motor to activate the compressor, it demonstrates the structure and operation of automotive AC systems. Designed for vocational schools and technical institutes, it supports theoretical study and hands-on maintenance training.
2. Core Features
| Function | Technical Detail |
|---|---|
| Cooling/Heating Simulation | 5L stainless tank with heater (2500W) + electric pump simulates heating; motor-driven compressor demonstrates cooling. |
| Diagnostic Capabilities | Test terminals for voltage/resistance checks; OBD-II port for code reading/clearing; remote fault setting (10m range). |
| Durability & Safety | Automotive-grade wiring/fuses; 4mm fireproof panels; 220V-to-12V conversion; wheeled base with locks. |
| User Support | Dual temperature displays; 20cm steel workspace; included manuals/spare fuses. |
3. Technical Specifications
- Dimensions: 1500×1000×1700mm
- Power: AC 220V ±10% → DC 12V
- Coolant: R134a
- Motor: 2.2KW, 1420r/min
- Materials: 1.5mm steel frame, UV-printed circuit diagrams
Training Focus: AC component analysis, refrigerant handling, electrical signal testing, and fault diagnosis.
