Automotive Sensor Actuator Measurement Educational Equipment
Basic Properties
Place of Origin:
Guangdong,China
Brand Name:
Zhongcai
Certification:
IS09001/CE
Model Number:
ZC-QCD121A
Trading Properties
Minimum Order Quantity:
1
Price:
Negotiatable
Payment Terms:
T/T
Supply Ability:
1000
Product Summary
Automotive Sensors & Actuators Training Platform 1. Product Overview This integrated training system consolidates 16 critical automotive sensors and actuators onto a single demonstration panel. Designed for technical education, it enables hands-on experimentation with signal measurement, fault ...
Product Details
Highlight:
Sensor Actuator Measurement Educational Equipment
,Automotive Measurement Educational Equipment
,Automotive Sensor Actuator Equipment
Training Object:
Automotive Electrical System
Product Warranty:
1 Year Limited Warranty
Suitable For:
Automotive Training Courses
Color:
Multicolor
Feature:
Education Training
Portable:
Lightweight And Easy To Transport
Material:
Metal
Training Modes:
Theoretical And Practical Training
Power Supply:
220V
Working Temperature:
-40 ℃~ + 50 ℃
Product Manufacturer:
Automotive Training Solutions
Compatibility:
Suitable For All Types Of Vehicles
Customizable:
OEM
Product Description

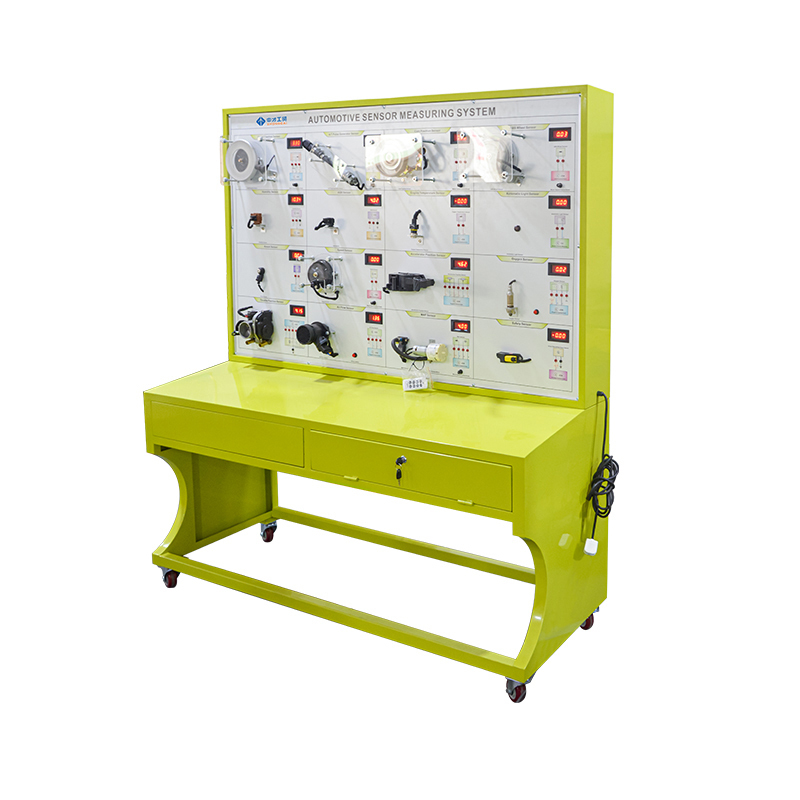

Automotive Sensors & Actuators Training Platform
1. Product Overview
This integrated training system consolidates 16 critical automotive sensors and actuators onto a single demonstration panel. Designed for technical education, it enables hands-on experimentation with signal measurement, fault diagnosis, and operational principles of modern vehicle control systems.
2. Core Features
| Functionality | Technical Implementation |
|---|---|

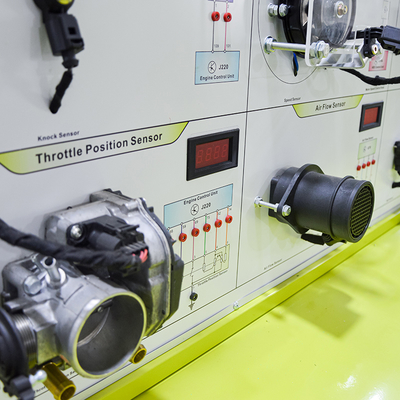

| Interactive Simulations | • Motor-driven sensors (Crankshaft, ABS wheel speed) with adjustable signal disks • Airflow meter with variable-speed fan • 12+ manually adjustable sensors (O₂, throttle position, etc.) |
| Real-time Diagnostics | Test terminals for voltage/resistance/frequency measurement; color-coded UV-printed circuit diagrams |
| Robust Construction | 4mm fireproof panels, automotive-grade wiring, 220V-to-12V conversion, lockable casters |
3. Technical Specifications
- Dimensions: 1600×600×1700mm
- Power Input: AC 220V ±10% 50Hz
- Operating Voltage: DC 12V
- Frame Material: 60×40×3mm steel tubing
- Temperature Tolerance: -40°C to +50°C
Training Objectives: Sensor/actuator operational theory, signal voltage analysis (e.g., oxygen sensors, ABS wheel speed), and systematic fault troubleshooting.
