High Quality Metal Steel Lithium Iron Phosphate BMS Battery Management Training Platform for Automotive Education
Basic Properties
Place of Origin:
Guangdong, China, Guangdong, China
Brand Name:
ZhongCai
Model Number:
ZC-QCB32A
Trading Properties
Minimum Order Quantity:
1
Product Summary
BMS Battery Management Training Platform for Automotive Education Equipment Configuration This comprehensive training platform includes a test terminal panel, BMS battery management control unit, 3.5-inch BMS information display, lithium iron phosphate battery pack, 12V switching power supply, ...
Product Details
Highlight:
steel lithium iron phosphate BMS
,automotive battery management training platform
,new energy BMS training equipment
Material:
Metal, Steel
Electric Powered:
No
Size:
1600X580X1800mm
Product Name:
BMS Battery Management Training Platform
MOQ:
1 Set
Certificate:
ISO9001/ISO14001/CE
Warranty:
1year
Color:
As Shown Or Customized
Function:
Learning
Language:
OEM Customized
Application:
Automotive College And School
Product Description
BMS Battery Management Training Platform for Automotive Education
Equipment Configuration

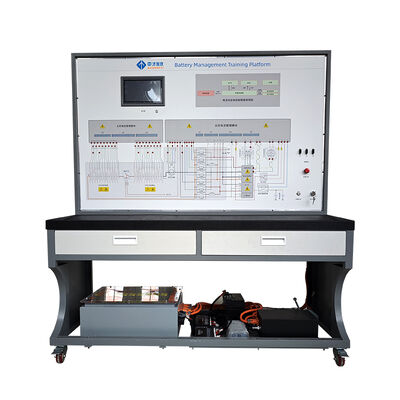

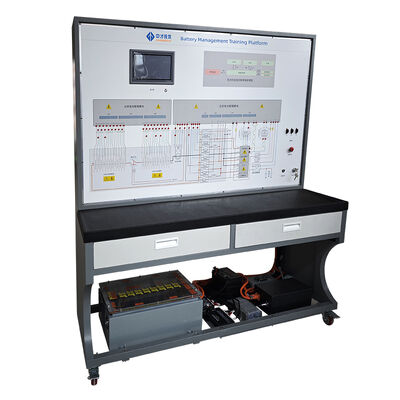

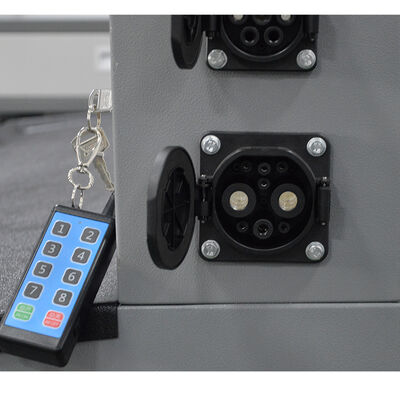

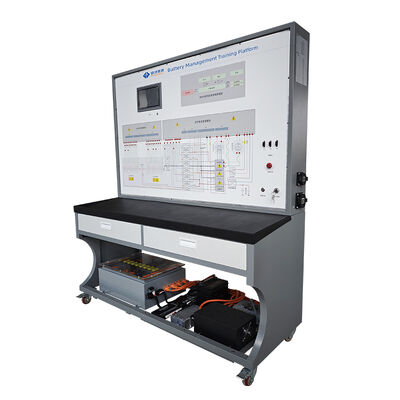

This comprehensive training platform includes a test terminal panel, BMS battery management control unit, 3.5-inch BMS information display, lithium iron phosphate battery pack, 12V switching power supply, emergency stop switch, charge/discharge switch, charging socket, load simulation, and movable platform with self-locking casters for easy positioning.
System Structure & Features
- Based on physical battery pack management and control system for pure electric vehicles
- Dynamic monitoring of single battery pack and cell voltage
- Real-time battery pack capacity estimation and temperature monitoring
- Comprehensive battery pack information display with real-time alarm indication
- Direct comparison between structural schematic diagrams and physical components
- Equipped with main power switch, emergency stop, jog switch, and power detection terminals
- Resistive load simulation for battery discharge during vehicle operation
- Standard 220V AC power supply with compact dimensions
Training Capabilities
- Understanding BMS control principles for power battery packs
- Learning functions of BMS components in power battery systems
- Power battery pack BMS logic control relationships
- Battery pack BMS fault diagnosis and troubleshooting
- Battery pack BMS disassembly, assembly, and maintenance procedures
Technical Specifications
| Name | BMS Battery Management Training Platform |
|---|---|
| Category | Teaching Board Equipment |
| Brand | Zhongcai |
| Place of Origin | China Guangzhou |
| Certification | ISO9001/ISO14001/CE |
| Input Supply | AC 220V±10% 50Hz |
| Working Power | DC 12V |
| Dimensions (L×W×H) | 1600mm × 580mm × 1800mm |
| Weight | 600kg |
