New Energy Automotive Professional Didactic Equipment
Place of Origin:
Guangdong，China
Brand Name:
Zhongcai
Certification:
ISO9001/CE
Model Number:
Cherry EQ1 ZC-QCG50A
Minimum Order Quantity:
1
Price:
Negotiable
Standard Packaging:
Wooden Box
Delivery Time:
15-25Work Days
Payment Terms:
T/T
Supply Ability:
1000
Product Details
Highlight:
Automotive Professional Didactic Equipment
,Professional Didactic Equipment
,New Energy Automotive Professional Didactic Equipment
Power Supply:
Electricity
Warranty:
1 Year
Type:
Training Equipment
Training Object:
New Energy Automotive System
Frequency:
50Hz
Training Content:
Basic Knowledge, Troubleshooting, Maintenance
Training Mode:
Simulation, Hands-on Practice
Application:
New Energy Automotive Industry
Voltage:
220V
Product Description
1. System Overview & Training Value

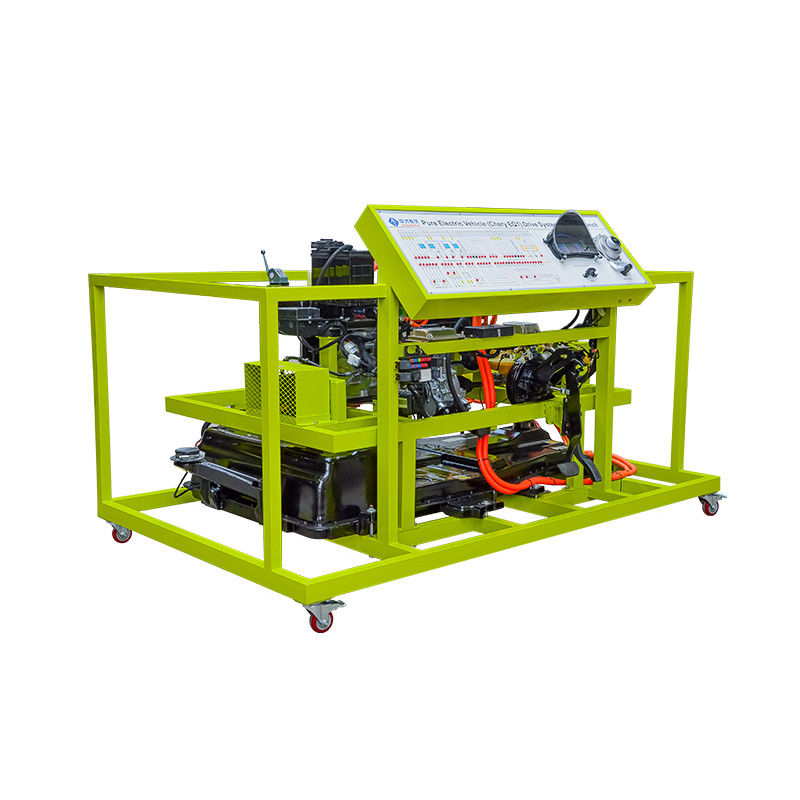

This operational pure electric vehicle drive system training platform provides complete automotive professional training by demonstrating actual EV drivetrain architecture and dynamic working processes. Designed for technical education, it offers:
- Fully functional EV propulsion system replication
- Real-world component interaction and operation
- Comprehensive hands-on learning experience for automotive professional training programs
- Industry-aligned skill development for next-generation technicians
2. Technical Features & Specifications
The platform incorporates advanced engineering solutions:
Structural Components
- 4mm military-grade aluminum composite panel with:
- Corrosion/impact/chemical resistant coating
- UV-printed permanent circuit diagrams
- Flame-retardant and moisture-proof treatment
Operational Systems

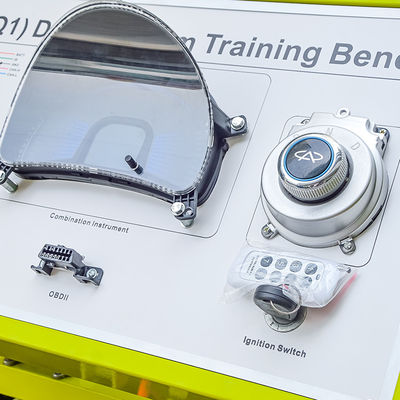

- Live vehicle instrumentation displaying:
- Powerflow visualization
- Real-time parameters (speed/voltage/temperature)
- Fault diagnosis indicators
- Multi-point test terminals for:
- Signal measurement (voltage/current/frequency)
- Waveform analysis
- System diagnostics
Control & Safety
- Electronic throttle simulation module
- Emergency power disconnect
- Rotating mechanism guards
- Steel frame construction with:
- Powder-coated surface
- Industrial locking casters
3. Educational Applications
Optimized for automotive professional training environments, the platform enables:
- EV drivetrain principle demonstration
- System performance analysis
- Fault diagnosis and troubleshooting
- Safety procedure training
- Data acquisition and interpretation
The ruggedized design (1740×1200×1700mm) with -40°C to +50°C operational range ensures reliability in intensive training scenarios, making it ideal for vocational schools and manufacturer training centers.
Characteristics of teaching equipment
FAQ
Q1: Are you a trading company or manufacturer?
We are a manufacturer, our equipment is superior in quality and reasonable in price.
Q2: May we visit your factory?
Yes, welcome to our factory, our factory is in China Guangzhou City, it is near the Guangzhou Baiyun airport, very convenient to come here.
Q3: How to ensure the quality?
Our technicians are experts in this industry.Each assembly part has a controller to ensure stable operation of the equipment.
Q4: What is the warranty period and the delivery period?
Warranty period:12 months Delivery period: Usually 30 days
Q5: What is you terms of payment?
50% in advance, balance before shipment, we accept T/T, Cash.
