Vehicle Drive Motor Dissection Display Training Equipment
Place of Origin:
Guangdong,China
Brand Name:
Zhongcai
Certification:
IS09001/CE
Model Number:
BYD E5 ZC-QCG72A
Minimum Order Quantity:
1
Price:
Negotiatable
Standard Packaging:
Wooden Box
Delivery Time:
15-25Work Days
Payment Terms:
T/T
Supply Ability:
1000
Product Details
Highlight:
Vehicle Drive Motor Dissection Display
,Automotive Drive Motor Dissection Display
Features:
Simulates Real-life Automotive Scenarios
Application:
Automotive Industry
Material:
Steel
Usage:
Training And Education Purposes
Size:
800mm*800mm*1200mm
Color:
Customized
Type:
Training Equipment
Product Description

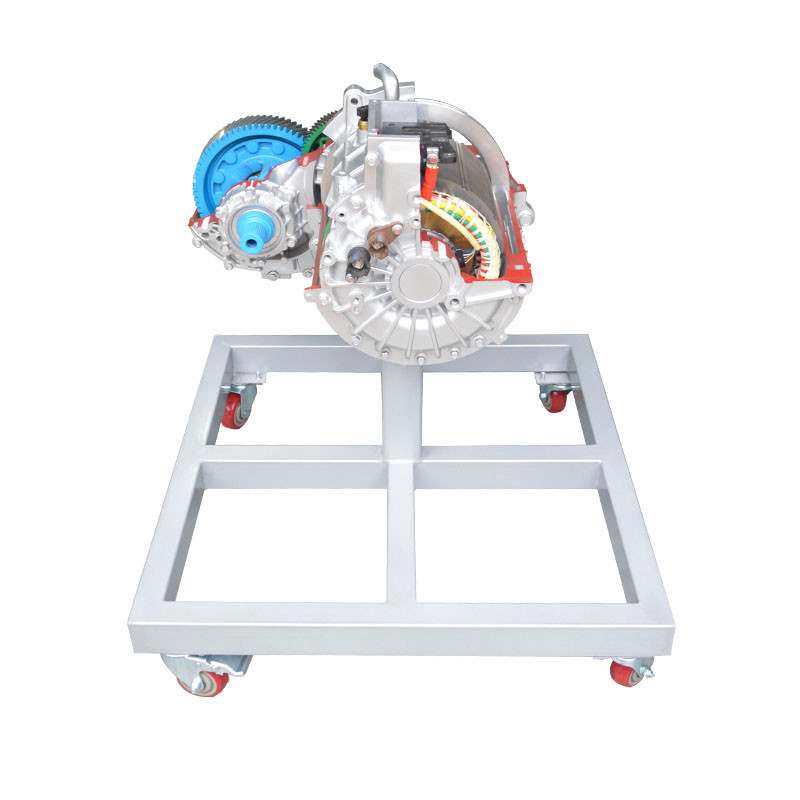

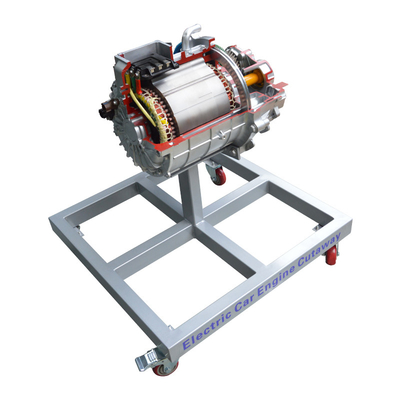

Drive Motor Dissection Display Training Equipment Introduction
1. Product Overview
The Drive Motor Dissection Display Training Equipment is specifically designed for teaching the structural components and working principles of electric vehicle drive motors. Through authentic dissection demonstration, it visually presents the internal structure of drive motors and main controllers, enabling students to thoroughly understand their operational mechanisms. Ideal for vocational schools and technical training institutions.
2. Product Features
- Authentic Structural Demonstration: Manufactured based on the original BYD e5 permanent magnet synchronous drive motor assembly, featuring complete dissection of both the drive motor and differential assembly.
- Clear Cross-Section Design: Critical components are painted in different colors for distinct layering, facilitating observation and learning.
- Safety Protection: Dissected surfaces are sealed with transparent acrylic, ensuring teaching safety without compromising visibility.
- Mobility: Mounted on a fully aluminum mobile base with casters, offering oil resistance, corrosion resistance, and easy relocation.
3. Technical Specifications
| Item | Specification |
|---|---|
| Dimensions | 800mm×800mm×1200mm |
| Operating Temperature Range | -35℃～40℃ |
| Weight | 120kg |
FAQ
Q1: Are you a trading company or manufacturer?
We are a manufacturer, our equipment is superior in quality and reasonable in price.
Q2: May we visit your factory?
Yes, welcome to our factory, our factory is in China Guangzhou City, it is near the Guangzhou Baiyun airport, very convenient to come here.
Q3: How to ensure the quality?
Our technicians are experts in this industry.Each assembly part has a controller to ensure stable operation of the equipment.
Q4: What is the warranty period and the delivery period?
Warranty period:12 months Delivery period: Usually 30 days
Q5: What is you terms of payment?
50% in advance, balance before shipment, we accept T/T, Cash.
