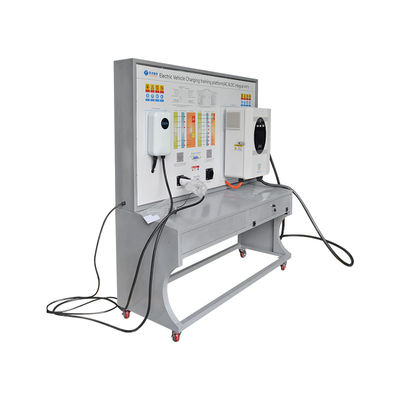

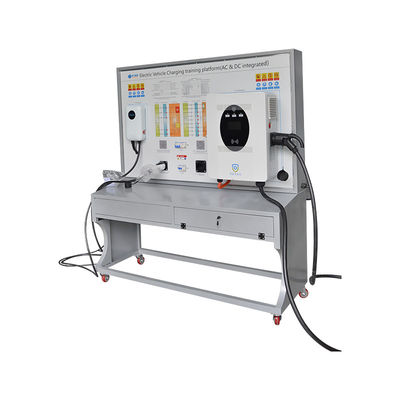

AC / DC Charging System Equipment for Car Vocational School
Place of Origin:
Guangdong,China
Brand Name:
Zhongcai
Certification:
IS09001/CE
Model Number:
ZC-QCG78A
Minimum Order Quantity:
1
Price:
Negotiatable
Standard Packaging:
Wooden Box
Delivery Time:
15-25Work Days
Payment Terms:
T/T
Supply Ability:
1000
Product Details
Highlight:
AC Charging System Equipment
,DC Charging System Equipment
Simulation Function:
Vehicle Operation
Power:
Electric
Energy Type:
New Energy
Dimensions:
640×500×1650mm
Function:
Teaching
Language:
English/Customizable
Training Topics:
Electric Vehicle Technology
Training Environment:
Indoor
Product Description
Intelligent Charging System Training Equipment
1. Core Functions & Educational Advantages
The Charging System Equipment integrates theoretical learning with hands-on training, providing comprehensive support for developing skilled professionals in EV charging technology. Featuring a modular design, this equipment accurately replicates commercial charging station operations, including AC/DC charging piles, an intelligent management system, and safety protection devices. It supports multi-level training—from fundamental concepts to advanced fault diagnosis—making it ideal for vocational and technical education.
2. Technical Specifications & Configuration Details
| Item | Specifications |
|---|---|
| Structure Material | European-standard aluminum profile frame + 1.5mm steel panel (1500×800×1800mm) |
| Charging System | Supports GB/T AC slow charging (7kW) & DC fast charging (60kW) simulation, RFID-enabled |
| Monitoring System | Real-time display of 16 parameters (voltage: 0-750V, current: 0-250A, SOC, temp., etc.) at 1Hz refresh rate |
| Safety Protection | Five-layer protection (over/under voltage, overcurrent, leakage, emergency stop), IP54 rating |
| Training Components | Includes color circuit diagrams (acrylic-coated), 32-channel test terminals, and 30+ programmable fault points |
| Smart Assessment | WiFi-enabled wireless control, supports 100 concurrent devices with auto-grading & error analysis |
| Expansion Ports | CAN/OBDII/RS485 interfaces, compatible with BMS simulators |
The Charging System Equipment adopts a "theory-practice-assessment" integrated teaching approach, significantly enhancing students' practical skills in charging pile operation, maintenance, and troubleshooting. It is suitable for vocational schools, training institutions, and corporate technical programs.
FAQ
Q1: Are you a trading company or manufacturer?
We are a manufacturer, our equipment is superior in quality and reasonable in price.
Q2: May we visit your factory?
Yes, welcome to our factory, our factory is in China Guangzhou City, it is near the Guangzhou Baiyun airport, very convenient to come here.
Q3: How to ensure the quality?
Our technicians are experts in this industry.Each assembly part has a controller to ensure stable operation of the equipment.
Q4: What is the warranty period and the delivery period?
Warranty period:12 months Delivery period: Usually 30 days
Q5: What is you terms of payment?
50% in advance, balance before shipment, we accept T/T, Cash.
