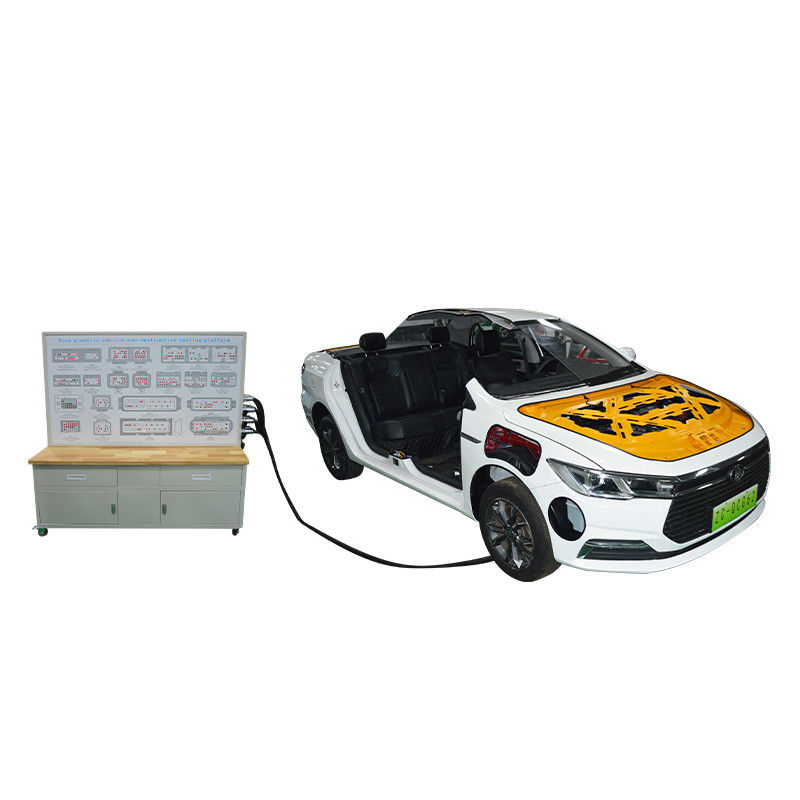

BYD Qin EV Pure Electric Vehicle Dismantling Training System Technical Specifications

1. Core Training Configuration

• Vehicle Type: Dedicated pure electric dismantling training model
• Power System: Permanent magnet synchronous motor (100kW max power)
• Battery System: 53.1kWh training battery pack (non-functional)
• Structural Features: Modular design for repeated disassembly
• Compatibility: Supports connection with fault diagnosis platforms

This professional Modification and Testing Training Education Equipment provides complete EV system structure while ensuring training safety, making it ideal for new energy vehicle maintenance education.

2. Safety & Protection Systems

• High Voltage Protection: Complete high-voltage distribution system with visual protection
• Safety Mechanisms: Pre-charge simulation, insulation detection, collision protection
• Fault Simulation: Supports relay status detection and interlock system diagnostics
• Training Safety: All high-voltage components insulated with emergency stop function

The system integrates multiple protection strategies with fault simulation capabilities, perfectly suited for Vehicle Testing Platform requirements.

3. Specialized Training Features

Enhanced Training Functions

• • Quick-disconnect wiring harnesses

  • QR-coded component identification

  • Dedicated dismantling toolset included

Structural Advantages

• • Sectional chassis disassembly

  • Removable battery module

  • Preserved original wiring layout

Teaching Support

• • Compatible with smart teaching systems

  • Supports group practical training

  • Ideal for certification programs

As advanced Modification and Testing Training Education Equipment, this system combines authentic vehicle architecture with optimized training features, serving as a comprehensive platform for EV technology education and skill certification.

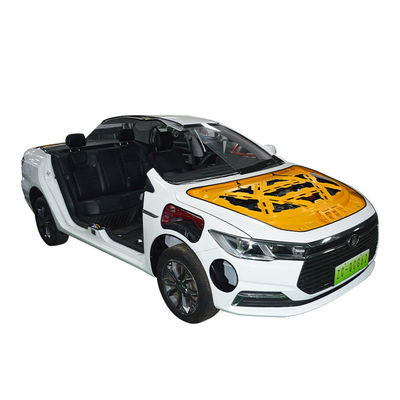

4,Product detail diagram

FAQ

Q1: Are you a trading company or manufacturer?
We are a manufacturer, our equipment is superior in quality and reasonable in price.

Q2: May we visit your factory?
Yes, welcome to our factory, our factory is in China Guangzhou City, it is near the Guangzhou Baiyun airport, very convenient to come here.

Q3: How to ensure the quality?
Our technicians are experts in this industry.Each assembly part has a controller to ensure stable operation of the equipment.

Q4: What is the warranty period and the delivery period?
Warranty period:12 months Delivery period: Usually 30 days

Q5: What is you terms of payment?
50% in advance, balance before shipment, we accept T/T, Cash.
