Electric Vehicle Charging Pile Teaching System

1. Product Overview

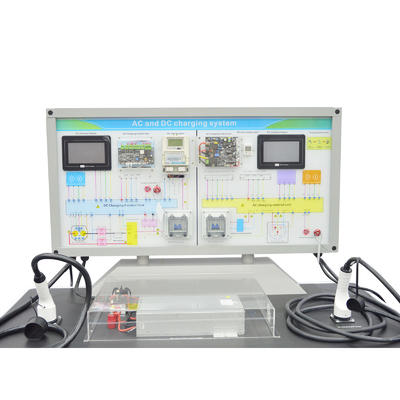

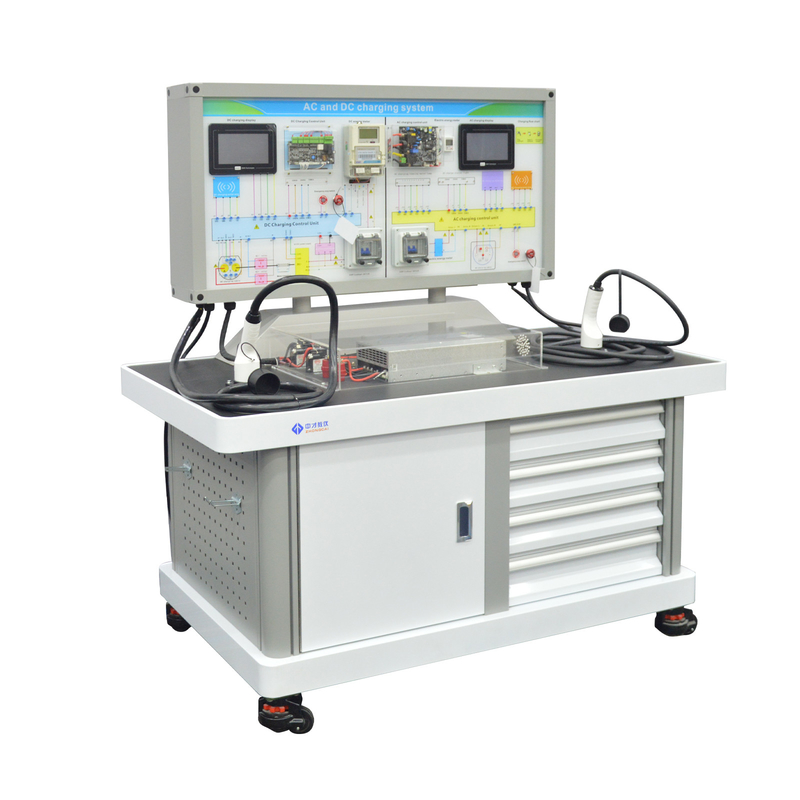

This Electric Vehicle Charging Pile Teaching System is based on real AC/DC charging infrastructure, featuring a modular design with a mobile frame and an instructional panel. The system accurately replicates the operational principles of actual charging piles, making it ideal for vocational schools and training institutions. It serves as essential new energy automotive training equipment, supporting in-depth learning of Battery Management System (BMS) training modules, charging logic, and fault diagnosis.

2. Core Components

The system integrates key functional modules, including:

• Safety Protection: Leakage protection switch and lightning arrester ensure operational safety.
• Smart Control Unit: Energy meter and main controller enable precise charging management.
• Charging Interface & Management Terminal: Simulates real-world charging scenarios with a Vehicle Charging System Module and an integrated management console.

Additional components such as high-power relays, switching power supplies, and emergency stop switches ensure stable performance, aligning with industry standards.

3. Training Capabilities

• Operational Principles: Demonstrates charging pile functionality in real time.
• Backend Management Simulation: Provides hands-on practice with charging station monitoring software.
• Fault Diagnosis Training: Simulates common failures to enhance troubleshooting skills in Pure Electric Vehicle Training Systems.

This system is a comprehensive solution for EV technology education, preparing technicians for the growing new energy vehicle industry.

FAQ

Q1: Are you a trading company or manufacturer?
We are a manufacturer, our equipment is superior in quality and reasonable in price.

Q2: May we visit your factory?
Yes, welcome to our factory, our factory is in China Guangzhou City, it is near the Guangzhou Baiyun airport, very convenient to come here.

Q3: How to ensure the quality?
Our technicians are experts in this industry.Each assembly part has a controller to ensure stable operation of the equipment.

Q4: What is the warranty period and the delivery period?
Warranty period:12 months Delivery period: Usually 30 days

Q5: What is you terms of payment?
50% in advance, balance before shipment, we accept T/T, Cash.
