Vehicle Hybrid Power Engine System Anatomy Training Equipment

Place of Origin: Guangdong,China
Brand Name: Zhongcai
Certification: IS09001/CE
Model Number: COROLLA ZC-QCG55B
Minimum Order Quantity: 1
Price: Negotiatable
Standard Packaging: Wooden Box
Delivery Time: 15-25Work Days
Payment Terms: T/T
Supply Ability: 1000
Product Details
Highlight:

Anatomy Training Equipment

,

Hybrid Power Engine System Training Equipment
Product Type: Training Equipment
Training Materials: Steel
Steel Pipe: 60 X 40 X 3mm
Function: Training And Education
Equipment Material: High Quality
Rated Power: 1.5KW
Weight: About 300kg
Panel Cabinet: 1.5mm Cold Plate Stamping
Frequency: 50Hz
Country Of Origin: China
Product Description

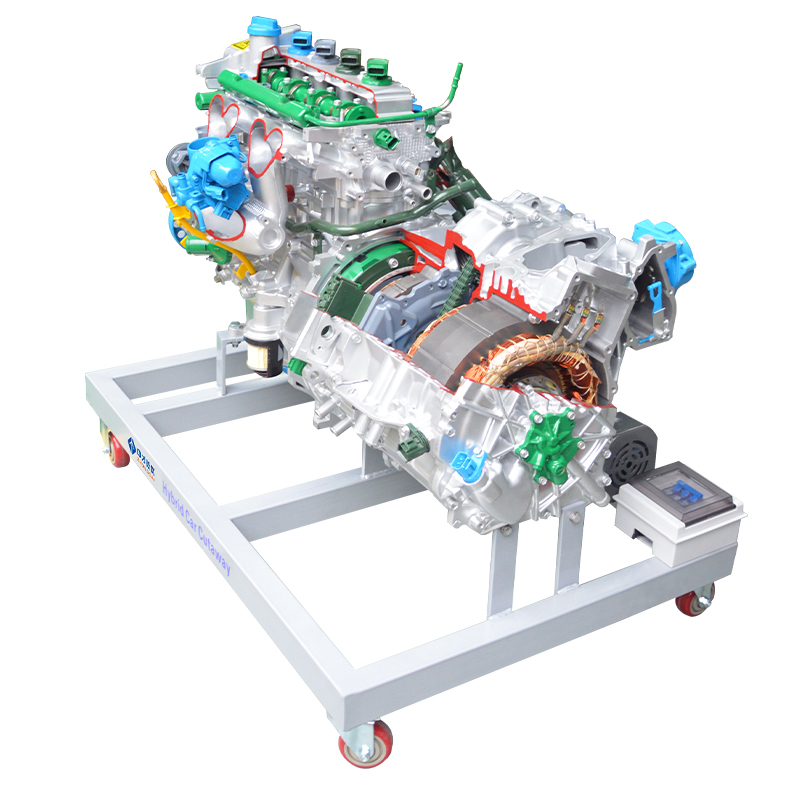

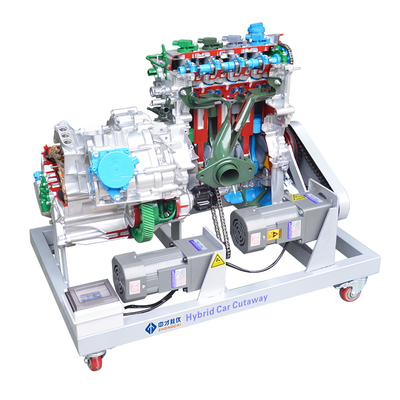

Series-Parallel Hybrid System Trainer – Mechanical & Electrical Integration

1. Product Description: Advanced Hybrid Vehicle Trainer

Designed for automotive technical training, this Hybrid Powertrain Cutaway Model uses an OEM series-parallel hybrid system with strategic cross-sections to expose critical components. The MCU-controlled simulation replicates real-world driving conditions, making it an essential tool for hybrid vehicle maintenance courses.

2. Core Functions: Enhanced Visualization & Practical Training

  • Multi-Color Component Highlighting: Different-colored paint on sectioned parts improves structural recognition.
  • Dynamic Motion Demonstration: The induction motor drives the engine crankshaft and motor shaft, simulating low-speed operation for clear observation.
  • Industrial-Grade Mobility: Heavy-duty steel frame with anti-slip casters ensures stability during hands-on sessions.

3. Technical Parameters & Educational Value

  • Motor Details: 120W, 1400 RPM max | Voltage: AC 220V
  • Teaching Applications:
    • Hybrid system architecture analysis
    • Mechanical movement observation
    • Comparative study of hybrid driving modes
  • Included Accessories: Full hybrid assembly, motor, and mobile platform.

Vehicle Hybrid Power Engine System Anatomy Training Equipment 0

Vehicle Hybrid Power Engine System Anatomy Training Equipment 1

Vehicle Hybrid Power Engine System Anatomy Training Equipment 2

Vehicle Hybrid Power Engine System Anatomy Training Equipment 3

Vehicle Hybrid Power Engine System Anatomy Training Equipment 4

Vehicle Hybrid Power Engine System Anatomy Training Equipment 5

Vehicle Hybrid Power Engine System Anatomy Training Equipment 6

FAQ

Q1: Are you a trading company or manufacturer?
We are a manufacturer, our equipment is superior in quality and reasonable in price.

Q2: May we visit your factory?
Yes, welcome to our factory, our factory is in China Guangzhou City, it is near the Guangzhou Baiyun airport, very convenient to come here.

Q3: How to ensure the quality?
Our technicians are experts in this industry.Each assembly part has a controller to ensure stable operation of the equipment.

Q4: What is the warranty period and the delivery period?
Warranty period:12 months Delivery period: Usually 30 days

Q5: What is you terms of payment?
50% in advance, balance before shipment, we accept T/T, Cash.

Vehicle Hybrid Power Engine System Anatomy Training Equipment 7
