Teaching Board Car Central Control Door Lock / Anti-theft System

Product Introduction:

This device uses the actual components of automotive central locking and anti-theft systems as a basis, fully demonstrating the composition structure and working process of automotive central locking and anti-theft systems. It is suitable for teaching theoretical knowledge and maintenance training of automotive central locking and anti-theft systems in schools.

Functional Features:
1) The equipment uses the actual components of automotive original central locking and anti-theft systems as a basis, fully demonstrating the composition structure and working process of automotive central locking and anti-theft systems.
2) By operating the key switch or door lock switch, all four doors' locks can close or open simultaneously; when the ignition key is turned off and the anti-theft state is set, the anti-theft system activates, causing the alarm horn to sound, lights to flash, and the starter motor circuit to be cut off, among other anti-theft functions. This provides a real demonstration of the working process of automotive central locking and anti-theft systems.

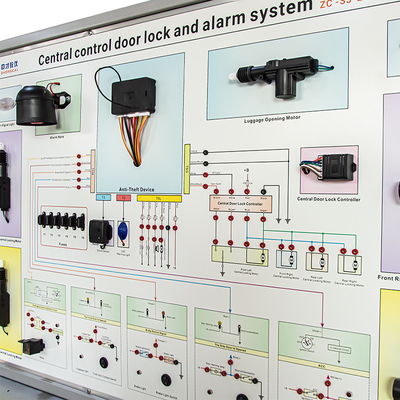

3) The instructional panel uses high-grade aluminum plastic board that is 4mm thick, resistant to corrosion, impact, pollution, fire, and moisture, with a surface treated by special spraying techniques. The panel prints colorful circuit diagrams that do not fade. Students can directly compare the circuit diagrams with the actual components to understand and analyze the working principles of automotive central locking and anti-theft systems.
4) The instructional panel is equipped with detection terminals, allowing direct testing of electrical signals from various circuit components of the automotive central locking and anti-theft system on the panel, such as resistance, voltage, current, and frequency signals.

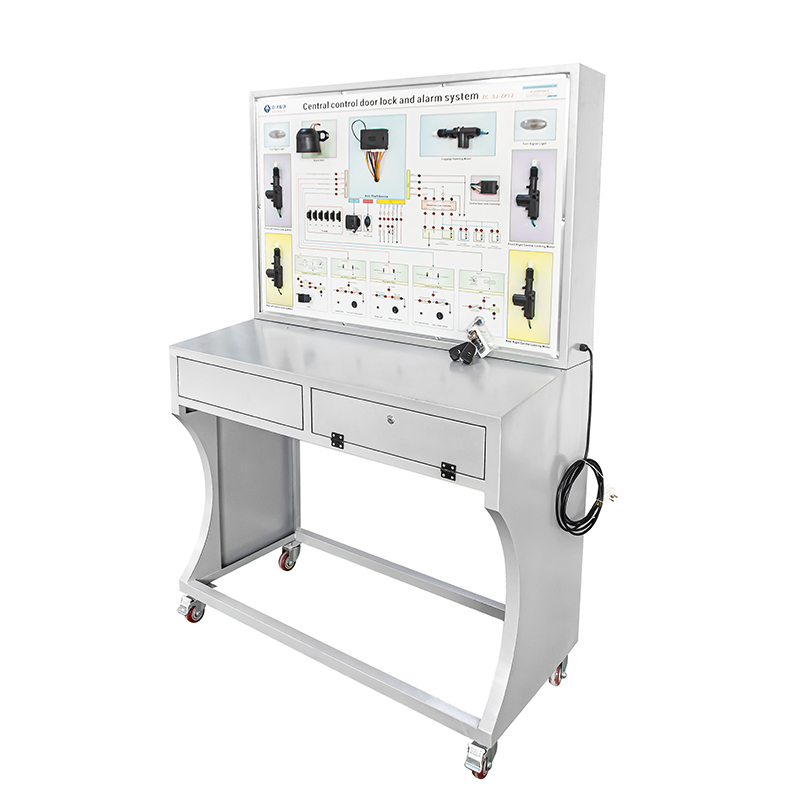

5) Part of the instructional panel adopts a 1.5mm cold-rolled steel sheet forming structure, with an aesthetically pleasing appearance; the base part uses steel structure welding, with a surface treated by spraying techniques, featuring self-locking casters. The instructional panel base has a 40cm desktop for placing documents and lightweight testing instruments.
6) The instructional panel operates using ordinary 220V AC power, which is converted into 12V DC power through internal circuits, eliminating the need for a battery and reducing charging inconvenience. The 12V DC power has short-circuit protection.
7) It is equipped with fault insertion, evaluation, and data acquisition systems.

Technical Specifications:
Dimensions (approx.): 1740×600×1700mm (length×width×height)
External Power Supply: AC 220V ±10% 50Hz
Operating Voltage: DC 12V
Operating Temperature: -40℃ to +50℃
Color: 7032
Steel Pipe: 40×40×3mm
Cabinet: 1.5mm cold-rolled steel sheet forming, with a maintenance door at the back;
Mobile Casters: 100×60mm
