Professional EV Chassis Training And Diagnostic Equipment

Name: Professional EV Chassis Training And Diagnostic Equipment
Brand: Guangdong Zhongcai Education Equipment Co., Ltd.
SKU: ZC-QCG165A
Availability: InStock

Brand Name:	zhongcai
Model Number:	ZC-QCG165A
MOQ:	1
Price:	Negotiatable
Delivery Time:	15-25Work Days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong,China

Certification:

IS09001/CE

Warranty:

1 Year

Application:

Automotive Engineering Education

Frequency:

50Hz/60Hz

Voltage:

110V/220V

Type:

Training Equipment

Steel Pipe:

60 X 40 X 3mm

Language:

OEM Customized

Training Materials:

Steel

Braking System:

Disc

Training Topics:

Operation, Maintenance, Troubleshooting

Accessories:

Instruction Manual, Tools, Spare Parts

Packaging Details:

Wooden Box

Supply Ability:

1000

Highlight:

Diagnostic EV Chassis Training Equipment

Professional EV Chassis Training Equipment

EV Chassis Training Equipment

Product Description

1. Product Overview

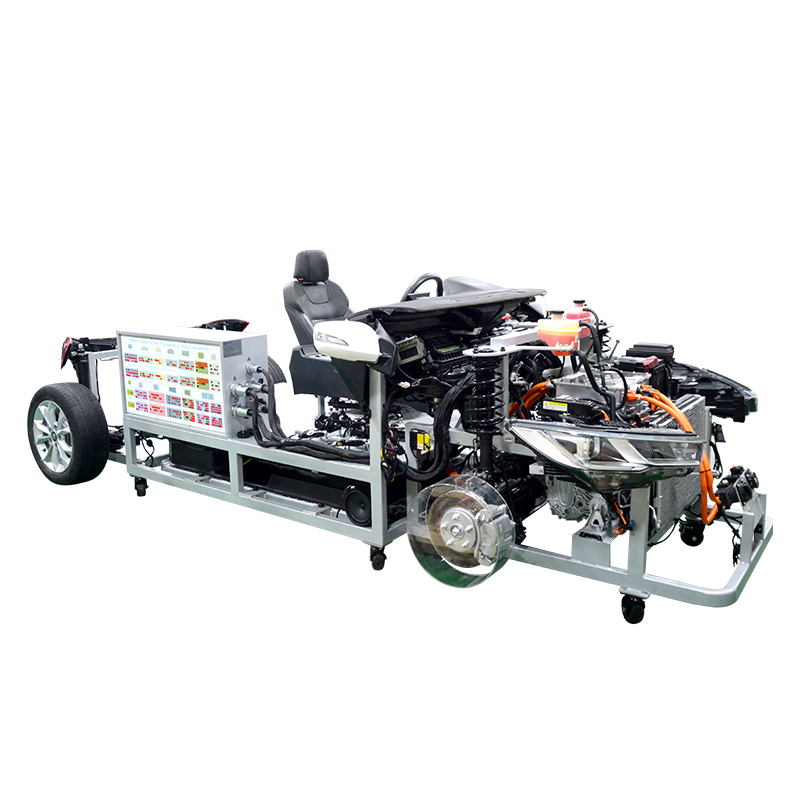

This electric vehicle training equipment is a complete automotive trainer based on the BYD Qin EV chassis, designed for automotive education equipment and automotive fault diagnosis training. The system features a fully exposed EV chassis with operational drivetrain, battery, steering, and braking systems, making it ideal for electric vehicle teaching equipment in vocational schools and technical institutes.

2. Key Features & Functions

Real EV Chassis Operation: Fully functional electric power steering trainer, motor, and battery systems for hands-on learning.
Fault Simulation & Diagnosis: Acts as an automotive diagnostic trainer with 24 programmable faults for troubleshooting practice.

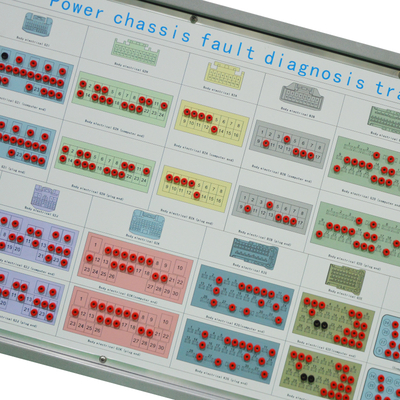

Interactive Learning: Includes an automotive basic electric circuit trainer with measurement terminals for system analysis.
Safety & Durability: Built with high-quality materials by a leading automotive training equipment manufacturer, featuring emergency cutoffs and protective covers.

3. Technical Specifications & Applications

Category	Details
Dimensions	4730×1700×1400mm
Power Source	Original vehicle systems
Temperature Range	-50°C to 50°C
Mobility	Locking casters (100mm)
Training Use	EV powertrain, steering, braking, and HV safety

This automotive training board serves as a comprehensive automotive training aid, supporting automotive teaching aids for EV technology education and professional skill development.

Professional EV Chassis Training And Diagnostic Equipment 0

Professional EV Chassis Training And Diagnostic Equipment 1

Professional EV Chassis Training And Diagnostic Equipment 2

Professional EV Chassis Training And Diagnostic Equipment 3

Professional EV Chassis Training And Diagnostic Equipment 4

Professional EV Chassis Training And Diagnostic Equipment 5

Professional EV Chassis Training And Diagnostic Equipment 6

Professional EV Chassis Training And Diagnostic Equipment 7
