Professional Movable Metal Steel Lithium Battery Structure Training Platform Square Module Dissection Bench for Vocational
Basic Properties
Place of Origin:
Guangdong, China, Guangdong, China
Brand Name:
ZhongCai
Model Number:
ZC-QCG01A
Trading Properties
Minimum Order Quantity:
1
Product Summary
Professional Movable Metal Steel Lithium Battery Structure Training Platform Equipment Configuration This comprehensive training platform includes two 3.2V 25AH lithium iron phosphate batteries (one for dissection) and two 3.7V 50AH ternary lithium batteries (one for dissection), along with a single...
Product Details
Highlight:
movable steel lithium battery training platform
,vocational battery structure dissection bench
,new energy automotive training equipment
Material:
Metal, Steel
Electric Powered:
No
Size:
1200x580x1800mm
Product Name:
Power Battery Square Dissection Training Table
MOQ:
1 Set
Certificate:
ISO9001/ISO14001/CE
Warranty:
1year
Color:
As Shown Or Customized
Function:
Learning
Language:
OEM Customized
Application:
Automotive College And School
Product Description

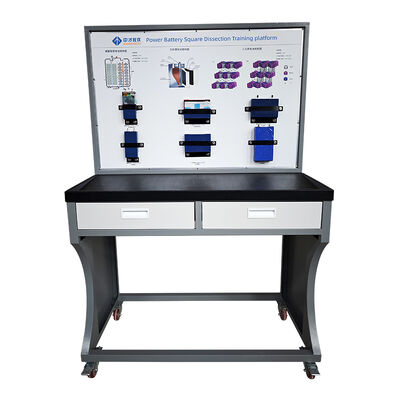

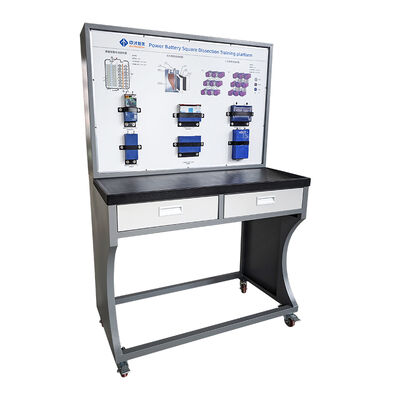

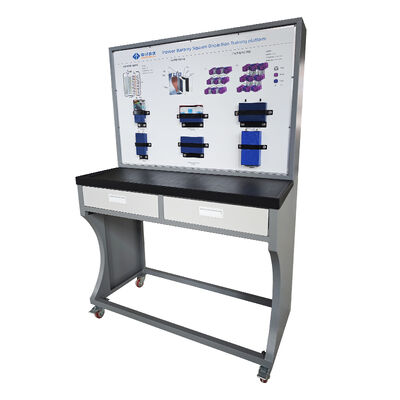

Professional Movable Metal Steel Lithium Battery Structure Training Platform
Equipment Configuration

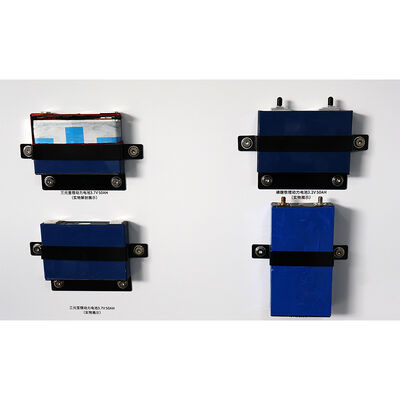

This comprehensive training platform includes two 3.2V 25AH lithium iron phosphate batteries (one for dissection) and two 3.7V 50AH ternary lithium batteries (one for dissection), along with a single-cell charging device, movable platform, and instructional teaching board. Students can use digital multimeters to measure voltage and internal resistance across different battery models, understand voltage plateau characteristics and fundamental power battery parameters, and practice recharging individual cells using the integrated charging system.
Training Platform Features
- Movable frame with upright schematic panel displaying 3D anatomical diagrams
- Comprehensive introduction to single battery fundamentals and power battery parameters
- Four caster wheels with self-locking mechanisms for flexible positioning and stability
- Hands-on measurement and analysis capabilities for vocational training
Technical Specifications
| Parameter | Specification |
|---|---|
| Equipment Dimensions | ≥1200×580×1800 mm |
| Panel Dimensions | ≥1150×750 mm |
| Charging Power Supply | AC220V±10% 50Hz, 5A, 4.2V |
| Operating Temperature | -5°C to 40°C |
| Power Battery Type | Lithium iron phosphate power battery (square aluminum shell, single cell 3.2V 60AH and 3.2V 50AH) |
Product Specifications
| Name | Power Battery Square Dissection Training Table |
|---|---|
| Category | Teaching Board Equipment |
| Brand | Zhongcai |
| Place of Origin | China Guangzhou |
| Certification | ISO9001/ISO14001/CE |
| Parameter | Customized |
| Input Supply | AC 220V±10% 50Hz |
| Working Power | DC 12V |
| Size (L×W×H) | 1200×580×1800 mm |
| Weight | 200 kg |
